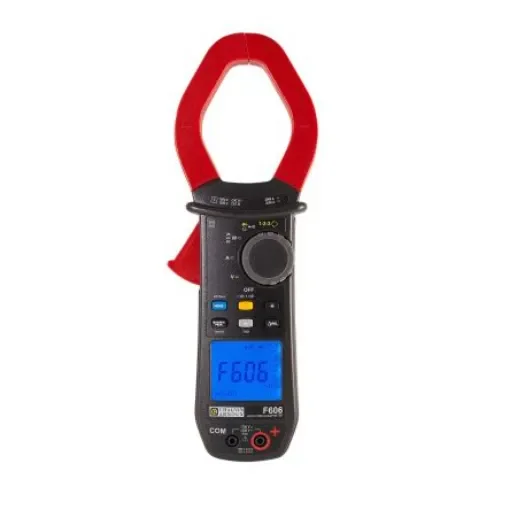

Chauvin Arnoux F606 Clamp Meter, 3000A dc, Max Current 2000A ac CAT III 1500V - P01120966

Absolute Maximum AC Current Measurement = 2000A ac
Absolute Maximum DC Current Measurement = 3000A dc
Absolute Maximum AC Voltage Measurement = 1200V ac
Absolute Maximum DC Voltage Measurement = 1700V dc
Absolute Maximum Resistance Measurement = 99.99kO
Model Number = F606
AC Current Measurement Resolution = 10mA
DC Current Measurement Resolution = 10mA
Best DC Current Accuracy = ±(1% rdg + 3dgts)
Clamp Meter Type = AC/DC Clamp Meter
Best AC Current Accuracy = ±(1% rdg + 3dgts)
Best AC Voltage Accuracy = ±(1% rdg + 3dgts)
Best DC Voltage Accuracy = ±(1% rdg + 3dgts)mm
Safety Category Voltage = CAT III 1500 V, CAT IV 1000V

F605 AC/DC TRMS Clampmeter. The F605 clampmeter is designed for the high-power LV market in sectors such as elctrical power distribution, chemical and petrochemical industries, metallurgy, transport The main applications are maintenance, testing, monitoring, diagnostics, sizing connection Equipped with a fast 12-bit TRMS digital acquisition system The large backlit triple display makes it easy to read in all circumstances Automatic AC/DC detection W/VA/var and PF power values THD-f and THD-r Resistance and audible continuity Min, Max and Peak± analysis on all functions Phase rotation Relative and differential measurements TrueInrush current measurements IP54 protection
