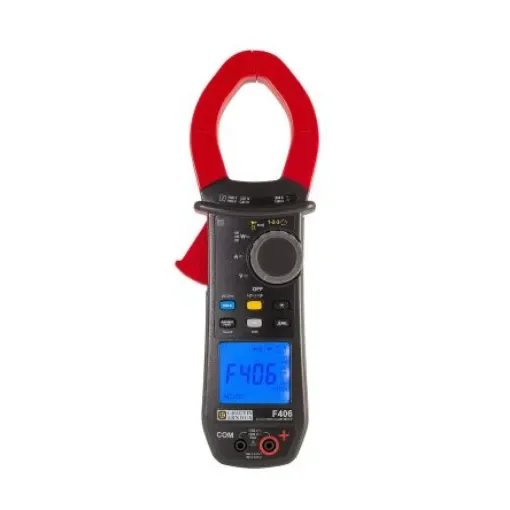

Chauvin Arnoux F406 Clamp Meter, 1500A dc, Max Current 1000A ac CAT III 1500V - P01120946

Absolute Maximum AC Current Measurement = 1000A ac
Absolute Maximum DC Current Measurement = 1500A dc
Absolute Maximum AC Voltage Measurement = 1200V ac
Absolute Maximum DC Voltage Measurement = 1700V dc
Absolute Maximum Resistance Measurement = 99.99kO
Model Number = F406
AC Current Measurement Resolution = 10mA
DC Current Measurement Resolution = 10mA
Best DC Current Accuracy = ±(1% rdg + 3dgts)
Clamp Meter Type = AC/DC Clamp Meter
Best AC Current Accuracy = ±(1% rdg + 3dgts)
Best AC Voltage Accuracy = ±(1% rdg + 3dgts)
Best DC Voltage Accuracy = ±(1% rdg + 3dgts)mm
Power Source = Batterymm

AC/DC TRMS Clampmeter. The clampmeter is designed for medium-power low-voltage applications in sectors such as LV electricity production and distribution, industry, railways This clamp multimeter is also suitable for lift/elevator technicians and other lifting and transport specialists The applications for the clamp multimeter are maintenance, testing, monitoring, diagnostics and connection Equipped with a fast 12-bit TRMS digital acquisition system The large backlit display makes it easy to read in all circumstances Automatic AC/DC detection AC and DC voltage up to 1000 V W/VA/var and PF power values THD-f and THD-r Resistance and audible continuity Analysis of Min, Max and Peak± on all functions Relative and differential measurements TrueInrush current measurement Phase rotation IP54 protection
