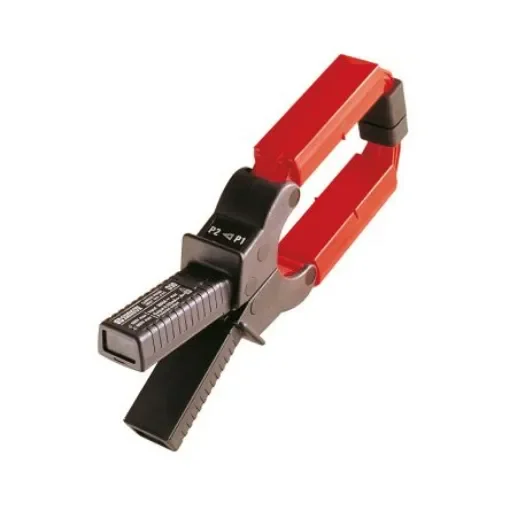

Chauvin Arnoux D38N Current Clamp, AC Adapter - P01120057A
The D38N AC Current Clamp provides accurate current measurements with a wide jaw opening for versatile use.
Manufacturer part number: P01120057A
GTIN: 3760171412527
Free shipping
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Adapter Type = AC
Best Accuracy = 2 %
Maximum Conductor Size = 64mm
Safety Category = CAT III 600 V, CAT IV 300V
Maximum Bandwidth = 50kHz
Model Number p = D38N
Bandwidth = 50kHz
IEC 1010-1 and IEC 1010-2-032, 600 V category III pollution degree 2, 300 V category IV pollution degree 2. Operating manual. D38N Oscilloscope clamp for AC current. The D38N (insulated AC current probe) offers accurate AC current measurement and a voltage output in mV allowing direct readings on oscilloscopes.A switch with 3 positions on the handle can be used to select the ranges.The wide opening of the jaws means they can be used on cables and small busbars. Current calibres: 1 A AC to 30 A AC (90 A peak) 1 A AC to 300 A AC (900 A peak) 1 A AC to 2400 A AC (9000 A peak) (3000 A for temperature ; 35°C) Bandwidth: 10 Hz to 50 kHz (depending on current) Max. jaw opening: 90 mm Output: 2 m coaxial lead with insulated BNC plug
