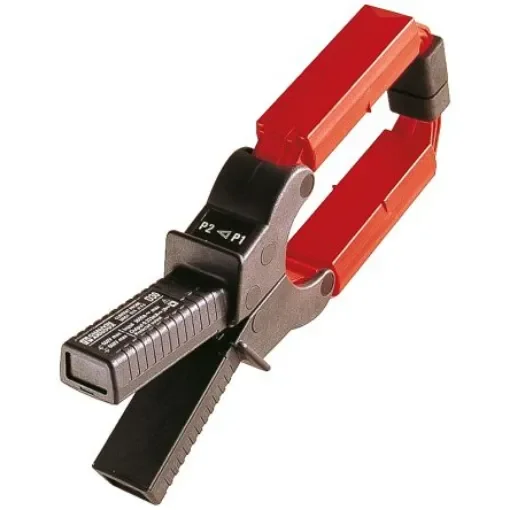

Chauvin Arnoux D30N Current Clamp, AC Adapter - P01120049A
The D30N Current Clamp provides accurate AC measurements with a maximum capacity of 2400 A.
Manufacturer part number: P01120049A
GTIN: 3760171412442
Free shipping
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Adapter Type = AC
Best Accuracy = 0.5 %
Maximum Conductor Size = 64mm
Safety Category = CAT III 600 V, CAT IV 300V
Maximum Bandwidth = 5kHz
Model Number p = D30N
Safety Category Voltage = 300 V, 600V
IEC 1010-2-032, 600 V category III, pollution degree 2, 300 V category IV pollution degree 2. Operating manual. D30N Current clamp for AC current. The D30N current clamp provides true RMS measurement values and faithful signal reproduction. The rectangular jaws can be used to clamp large-diameter cables or busbars.This current clamp may also be used with multimeters, harmonic and power measurement equipment, logging apparatus or other instruments allowing AC current input. Current calibre: 1 A AC to 2400 A AC (3000 A for temperature ; 35°C) Bandwidth: 30 Hz to 5 kHz Max. jaw opening: 90 mm Output: two safety sockets (4 mm)
