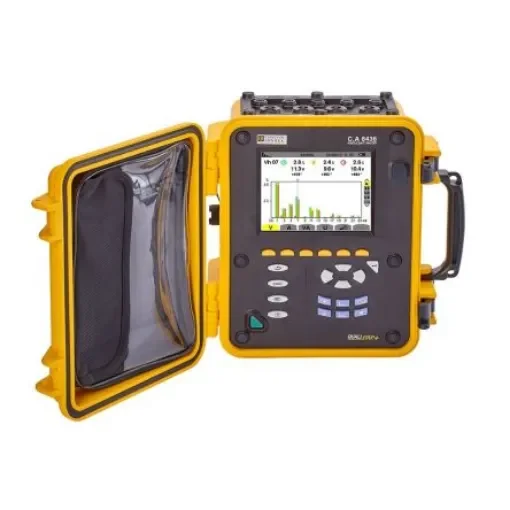

Chauvin Arnoux CA 8436 Power Quality Analyser, 1, 3-Phase, 100A Max, 1000 V ac, 1200V dc Max - P01160595

Absolute Maximum Power Measurement = 10 MW, 10 MVAR, 10 MVAW
Number of Phases = 1, 3
Maximum Voltage = 1000 V ac, 1200V dc
Best Voltage Measurement Accuracy = ±(0.5 % + 200 mV)
Best Current Measurement Accuracy = ±(0.5 % + 2 mA)
Display Type = Colour, TFT LCD
Measurement Standards = EN50160, IEC 61000-4-30
Interface Type = USB
Power Source = Battery, Mains
Battery Type = Rechargeable NiMH
Model Number p = CA 8436
Minimum Operating Temperature = 0°C

The Chauvin Arnoux CA8436 power and energy quality analyser measure all the necessary voltage, current and power parameters for full diagnosis of an electrical installation. It is self-powered by the phase from 100 V to 1000 V AC or DC. The rugged site case is ideal for industrial use in factories, production workshops, etc.Indoor and outdoor use including in the rain 5 voltage inputs, 4 current inputs Continuous, simultaneous recording of all the parameters Monitoring with alarms
