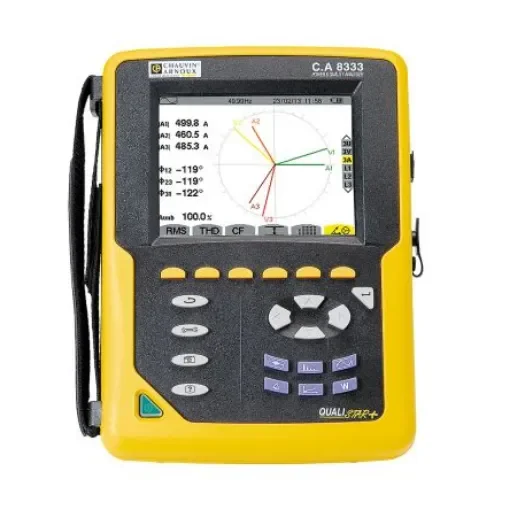

Chauvin Arnoux CA 8333 Power Quality Analyser, 1, 3-Phase, 10000A ac Max, 1000 V ac, 1200V dc Max - P01160541

IEC 61010 1000 V CAT III / 600 V CAT IV. Bag for accessories, 5 x 4 mm banana voltage leads 3 m long, 5 crocodile clips, a set of 12-colour inserts/rings for identifying the leads and inputs, a scratch-proof screen-protection film (mounted), a USB cable, a mains power cable, a mains power pack, a safety datasheet, a multi-language operating manual CD and a PC data retrieval software CD (Power Analyser Transfer). Current clamps are available separately. CA8333 Qualistar Plus Power and Energy Quality Analyser (EU Version). Designed for maintenance and test departments working in industrial or administrative buildings, the CA 8333 QualiStar Plus can be used to obtain a snapshot of the main features characterizing the quality of the electrical network. Easy to handle and compact, the QualiStar+ offers a large number of calculated values and several processing functions. For sizing installations or troubleshooting switching faults, the CA 8333 Power Quality Analyser is equipped with a transient mode which allows users to measure the inrush current over 4 periods The CA 8333 captures and records all the parameters, transients, alarms and waveforms simultaneously Large colour TFT screen for easy reading TRMS AC+ DC voltage up to 1000 V TRMS AC+ DC current: 5 mA to 10 kA depending on the sensors Frequency Power values: W, VA, var, VAD, PF, DPF, cos f, tan f Energy values: Wh, varh, VAh, VADh, BTU, toe, Joule Harmonics from 0 to the 50th order, phase Transients: up to 50 Inrush over 4 periods Recording of a selection of parameters at the maximum sampling rate for several days to several weeks Alarms: 4000 of 10 different types Peak detection Vectorial representation Available in more than 27 languages IP53 / IK08 USB communication IEC 61000-4-30 Class B
