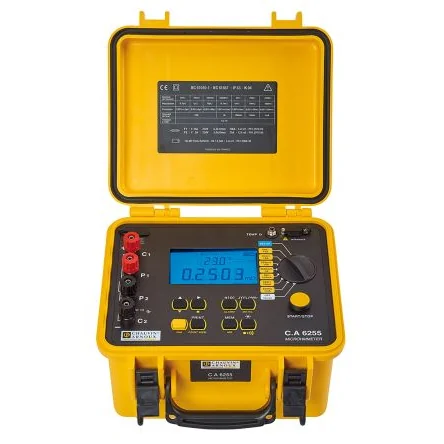

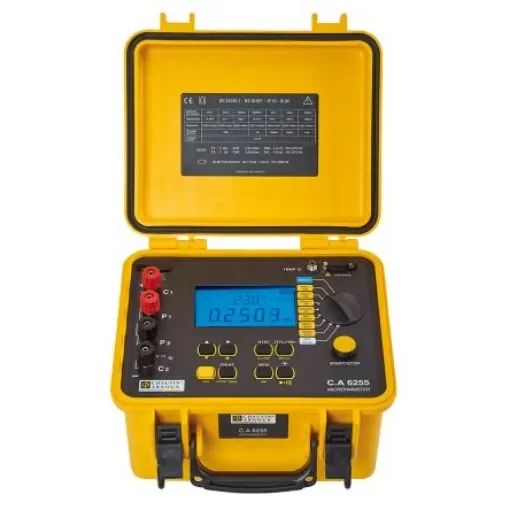

Chauvin Arnoux CA 6255 Handheld Ohmmeter, 2500 O Max, 100nO Resolution, 4 Wire - P01143221

Maximum Resistance Measurement = 2500 O
Resistance Measurement Resolution = 100nO
Measurement Type = 4 Wire
Battery Life = 4500 Tests
Battery Type = Rechargeable NiMH
Power Source = Battery
Handheld = Yes
Dimensions = 270 x 250 x 180mm
Weight = 4kg
Height = 180mm
Length = 270mm
Maximum Accuracy = 0.05 + 300 mO %
Maximum Operating Temperature = +50°C
Minimum Accuracy = 0.05 + 1 µO %
Minimum Operating Temperature = 0°C

Chauvin Arnoux Digital OhmmeterThe Chauvin Arnoux digital ohmmeter has seven measurements ranging from 5mohm to 2.500ohm. This ohmmeter is easy to use and carries out 4-wire measurements with a continuous or pulse current up to 10A. It carries out measurements in three modes like inductive, non-inductive and non-inductive with automatic trigger available depending on the application. This device has a programmable capacity for alarms and 1500 measurement values to be stored. It has a large backlit LCD display offering a wide range of symbols and indicators.Features and BenefitsAutomatic compensation of stray voltages Automatic compensation of stray voltages at input terminals Automatic discharge after test Automatic switching of the backlighting to standby to save battery power Calculation at reference temperature with Pt100 probe Communication with a PC Measurement up to 2.500ohm Optimized current generator on inductive objects Programmable alarms Resolution is 0.1µohm RS 232 interface to print the results on a serial printer or export them to a PC Temperature compensation function for comparative resultsApplicationsBonding measurements Component measurements Contact resistance measurements Earth continuity measurements Electric cable resistance measurements Motor and transformer resistance measurements Tests of mechanical linksCertificationsCE certified IP53 rated
