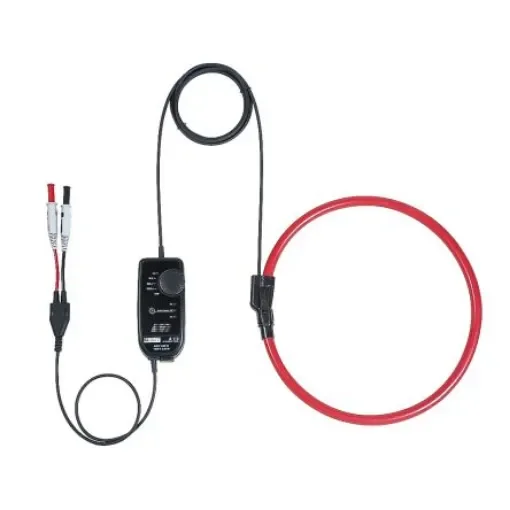

Chauvin Arnoux AmpFlex A110-120 Sensor, AC, Rogowski Coil Adapter, 30kA ac AC Max, Voltage Output - P01120632
The AmpFlex A110-120 sensor provides accurate AC current measurements up to 30kA with flexible design for easy handling.
Manufacturer part number: P01120632
GTIN: 3760171419182
Adapter Type = AC, Rogowski Coil
Maximum AC Current = 30kA ac
Best Accuracy = 1 %
Maximum Conductor Size = 360mm
Safety Category = CAT III 600 V, CAT IV 1000 V, CAT IV 600V
Output Type = Voltage
Connector Type = 4 mm Plug
Battery Type = AA, LR6 Alkaline
Battery Life = 300 h
Cable Length Extended = 1.2m
Maximum Operating Temperature = +55°C
Minimum Operating Temperature = -10°C
Safety Category Level = CAT III, CAT IVV
1 flexible current sensor, 2 x 1.5 V AA / LR6 alkaline batteries, 1 user manual in 5 languages, 1 safety datasheet and 1 verification certificate. Chauvin Arnoux AmpFLEX® A110 Series Flexible Current Sensors. These compact, lightweight and ergonomic sensors of varying diameters are capable of clamping all types of conductors, whatever their number, dimensions or shape (bars, etc.). Due to their flexibility, they can be used in any location, however cramped. They are ideal for the requirements in both industry and the tertiary sector. Their quick and easy opening/closing system makes them simple to handle even when wearing safety gloves. The AmpFlex® A110 Series comprises 3 flexible sensor models for direct connection to any multimeter, wattmeter or logger. These flexible coils offer the following major advantages: • Large measurement range • Bandwidth suitable for industrial frequencies and harmonic analysis • No saturation effect, so no overheating • Constant low phase shift appropriate for watt metric measurements. Features and Benefits. • Measurement Range: 80 mA to 30 kA. • 4 calibres. • Sensor Length (clamping diameter): 45 cm, 80 cm or 1.20 m (Ø14 cm, Ø25 cm, Ø38 cm). • Ingress protection of sensor/processing unit: IP67/IP54. • Output Signal: AC voltage. • Output via two-wire lead terminated by 2 x Ø 4 mm straight male banana safety connectors. • Power Supply: 2 x 1.5 V AA batteries or external µUSB type B 5 V. • Battery Life: 300 hours. • 1000 V CAT IV. • Single phase flexible current sensors. • IP67
