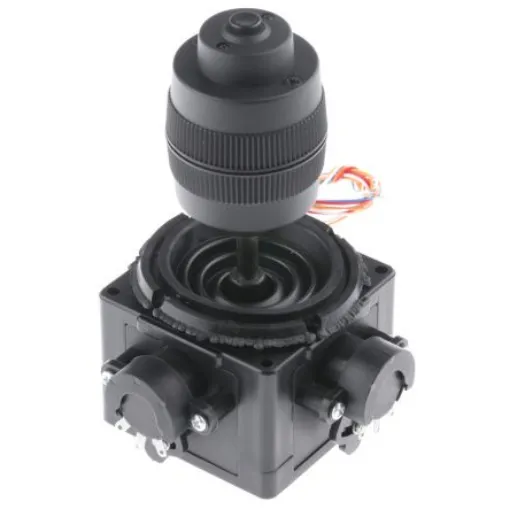

CH Products 3-Axis Potentiometer Joystick Passive - S40L091P-50

Sealed Potentiometer Joysticks. Brought to you by CH Products, the M Series of potentiometer joysticks are compact and low profile. With dual and three axis joysticks available, these self-centering potentiometer joysticks are ideal for applications where high accuracy and low operating force is a priority, such as in electric wheelchair, CCTV and robotics applications. Features and Benefits:. • Dual and three axis self centering joystick with two piece panel sealing kit • 3rd axis control achieved using rotational displacement of the handle • SPST switch option on the three axis model • Stainless steel ball pivot system and high grade plastic bearing surfaces for long life and accurate return to centre repeatability • Potentiometers Resistance of 5kO ±20% • Potentiometers Power of 0.5W • Potentiometers Linearity of ±5% • Panel Thickness of 1.3 to 4.75mm
