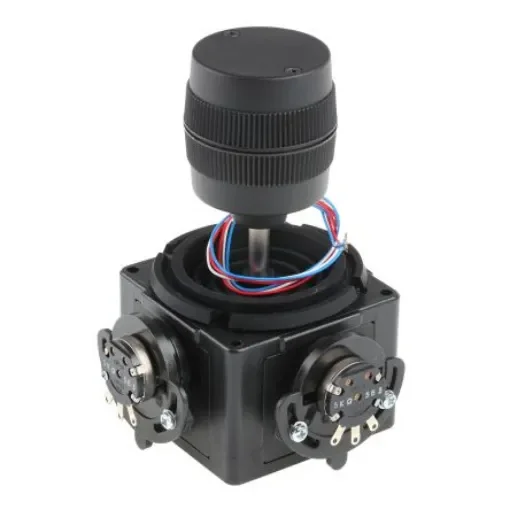

CH Products 3-Axis Potentiometer Joystick Castle, Passive - S30L081P-50

CH Products JoystickThe CH Products 3 way potentiometer joystick has an operating life of 5000000. It is a low profile potentiometric controller providing precision multi-axes finger-positioning control. This self-centering potentiometer joystick is ideal for applications where high accuracy and low operating force is a priority, such as in electric wheelchair, CCTV and robotics applications.Features and BenefitsPotentiometers resistance is 5kohm ±20% Potentiometers linearity is ±5% Panel thickness is 1.3mm to 4.75mm Operating temperature ranges between -25°C and 85°C Dual and 3-axes self-centring joystick with a 2-piece panel sealing kit 3rd axis control achieved using rotational displacement of the handle SPST switch option on the 3-axes model Stainless steel ball pivot system and high-grade plastic bearing surfaces for long life and accurate return to centre repeatability Potentiometers power is 0.5WApplicationsElectric wheelchairs CCTVs Robotics applicationsCertificationsANSI/ESD S20.20:2014 BS EN 61340-5-1:2007
