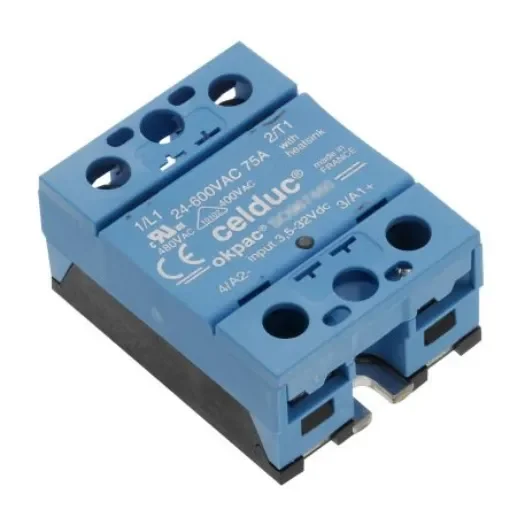

Celduc SON Series Solid State Relay, 75 A Load, Panel Mount, 480 V ac Load - SON867040
High-performance solid state relay with 75A capacity and zero cross switching for reliable operation.
Manufacturer part number: SON867040
GTIN: 3760283302617
Maximum Load Current = 75 A
Mounting Type = Panel Mount
Maximum Load Voltage = 480 V ac
Minimum Load Voltage = 50 V ac
Switching Type = Zero Cross
Range = okpac
Number of Poles = 1
Terminal Type = Screw
Output Device = Thyristor
Relay Type = Single Phase Solid State Relay
Series = SONms
Minimum Operating Temperature = -40°C
The Celduc Zero Cross Solid State Relay specially designed for most types of loads. Back to back Thyristor on output with TMS2 (*) technology with a long lifetime expectancy: 24 to 510VAC 75A. High I²t model > 6000A²s for MCB (Miniature Circuit Breaker) protection. Over-voltage protection by Thyristor turn on. Designed in conformity with EN60947-4-3 (IEC947-4-3) and EN60950 (Reinforced Insulation)Large control range with input current limiter Green LED visualization on the input Over-voltage protection on input (transil) IP20 protection by flaps on terminals
