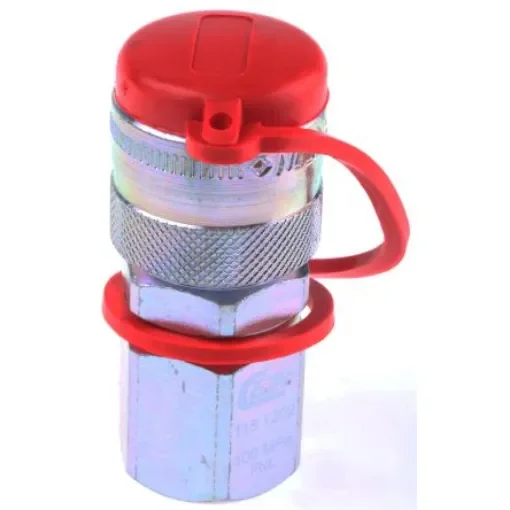

CEJN Steel Female Hydraulic Quick Connect Coupling, G 1/4 Female - 101151202

Thread = G 1/4 Female
Coupling Gender = Female
Thread Size = 1/4in
Material = Steel
Series = 115
Compatible With = CEJN 115 Nipple
Type = Union
Finish = Hardened Zinc Chromate Plated
Seal Material = Nitrile Rubber
Thread Standard = G
Thread Gender = Female
Maximum Operating Pressure = 100 MPa
Maximum Operating Temperature = +100°C
Minimum Operating Temperature = -30°C

CEJN 115 Series. Series 115 is available in both standard and flat-face design, for ease of cleanliness. The series is a CEJN original with extremely small outside dimensions and patented seal design. High pressure couplings working up to 1000 bar / flat faced design 800 bar Non drip on both connection and disconnection Compact design Two stage safety types Temperature range -30 to +100°C Plastic dust caps included as standard NBR seal material
