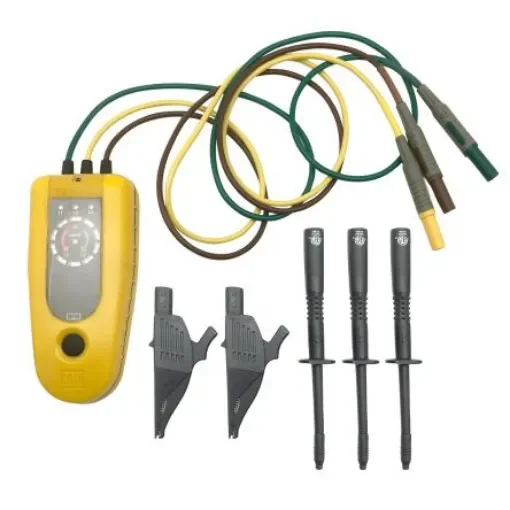

Catu MS-153 Phase Rotation Tester, 60Hz Max, 400V Max

Connection Type = Test Probe
Overvoltage Category = CAT III 400V
Dimensions = 100 x 60 x 25mm
Weight = 100g
Height = 25mm
Length = 100mm
Maximum Frequency = 60Hz
Width = 60mm

Phase order indicator. Rotating fields indicated via LED. Rotation direction indicated by "OK" and "Reverse" arrows. Fault detection LEDs for connection errors, cut or absent phase or neutral amongst the phases. Application. Phase rotation indicator activated from 85 V. Signaling via the successive lighting of diodes symbolising rotation. Works on generating unit. Features. The diodes indicate : o clockwise rotation: mark with arrow OK, o Anti clockwise rotation indicated by the red arrow "INVERSE" o Fault: the DEFECT diode (DEFAUT) indicates an error of connection such as the cut or absence of phase or the presence of neutral between phases. Composition. 3 probes IP2X with retractable protector with 1.20 m flexible cable. 2 crocodile clamps. 1 carrying bag with stray.
