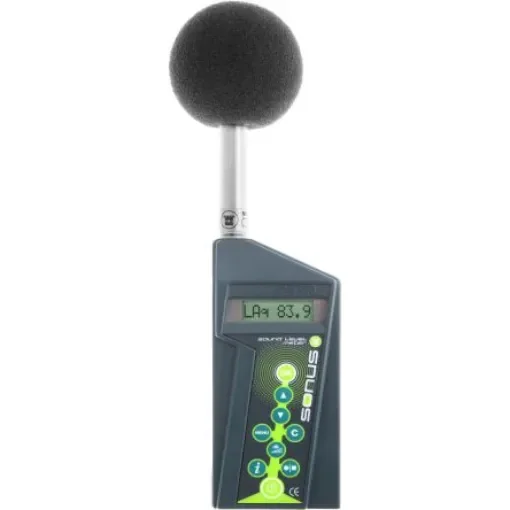

Castle Sonus GA116E Class 1 Datalogging Sound Level Meter, 20dB to 133dB, 20kHz max - 01GA116E

Maximum Sound Level = 133dB
Minimum Sound Level = 20dB
Resolution = 0.1 dB
Accuracy Class = IEC 61672-1:2002 Class 1
DOSE Measurement = No
Weighting = A, C, Z
Display Type = LCD
Battery Type = 9V PP3
Fast/Slow Time Averaging = Both
Data Logging = Yes
Interface Type = USB
Maximum Frequency = 20kHz
Maximum Operating Temperature = +50°C
Minimum Frequency = 20 Hz
Minimum Operating Temperature = -10°C

dBdataLITE PC software. 1. Castle GA116E Sonus Class 1 Environmental Data-logging Sound Level Meter. Fully compliant with European and International standards, the GA116E is designed for environmental managers, environmental health officers and pollution control professionals. The GA116E measures environmental noise parameters to assist with compliance of British, European and International standards, codes of practice and legislation. The Sonus E is supplied with dBdataLITE PC software to download results for subsequent analysis. Multiple file saving using on board Flash memory Dual channel measurements for Lp, Leq and Lmax Simultaneous measurement of Lp, Leq, Lmax, Apeak or Cpeak or Zpeak, LAE, L10, L90 and L(user) Channel independent Frequency weighting selection ‘A ‘, ‘C ‘ or ‘Z ‘ Channel independent Time weighting selection ‘Slow ‘, ‘Fast ‘ or ‘Impulse ‘ Sound pressure (Lp) to 0.1dB resolution Integrated equivalent level (Leq) measurement Single event sound exposure level (LAE) Percentile levels (L10, L90 and a user selectable level) Lmax - maximum Lp (rms) level Apeak, Zpeak or Cpeak – maximum Frequency weighted peak level Elapsed time (running time hrs, min, sec) Interval period Over Load and Under Range indication Housed in tough, crack-resistant ABS plastic
