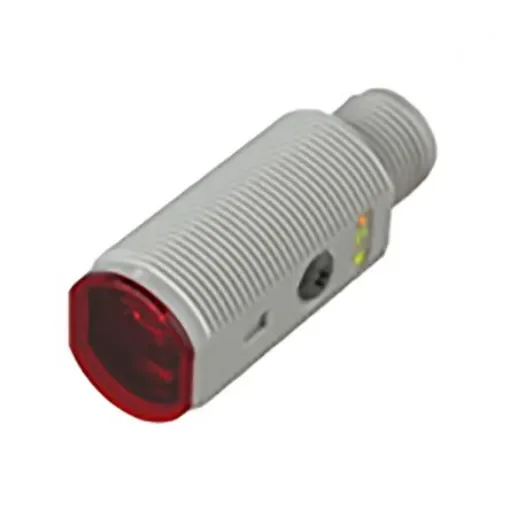

Carlo Gavazzi Through Beam Photoelectric Sensor, Miniature Sensor, 20 m Detection Range - PA18CAT20M1

Detection Range = 20 m
Electrical Connection = M12 4 Pin Connector
Maximum DC Voltage = 30V
Terminal Type = M12 Connector
Light Source = LED
IP Rating = IP67, IP69K
Response Time = <1 ms
Housing Material = ABS°C

The PA18C.T.. is part of a family of inexpensive general purpose through beam sensors in industrial standard 18 mm cylindrical ABS housing. The sensors are useful in applications where high accuracy detection as well as small size is required. Compact housing and high power LED for excellent performance-size ratio. The potentiometer used for adjustment of the sensitivity makes the sensors highly flexible. The output type is NPN or PNP and the output switching function is NO and NCMiniature sensor range Range: 20 m (Axial), 16 m (Radial) Sensitivity adjustment by potentiometer Modulated, infrared light 850 nm Supply voltage: 10 to 30 VDC Output: 100 mA, NPN or PNP, N.O + N.C LED indication for output, stability and power ON Protection: reverse polarity, short circuit and transients Cable and plug versions Excellent EMC performance
