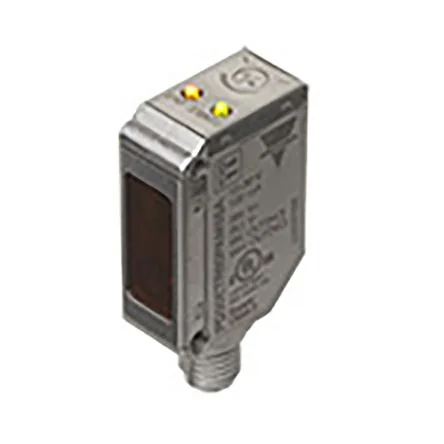

Carlo Gavazzi Through Beam Photoelectric Sensor, Miniature Sensor, 15 m Detection Range - PD30ETT15M5

Sensor Style = Miniature
Detection Type = Through Beam
Detection Range = 15 m
Electrical Connection = M8 4 Pin Connector
Maximum DC Voltage = 30V
Terminal Type = M8 Connector
IP Rating = IP68, IP69K
Maximum Current = 25 mA
Response Time = <1 ms
Housing Material = AISI316L, Stainless Steel°C

The PD30ET.. stainless steel sensors are built with high-quality materials and designed for harsh environments. They are designed for use in environments where high-pressure cleaning, cleaning agents and disinfectants are used on a daily basis. The strong stainless steel (AISI316L) together with high-quality plastic materials like PEEK, PPSU, and PES sealings of FKM ensure a safe and excellent mechanical resistance. The compact sensor design is ideally suited to confined spaces.Miniature sensor range Sensing range: 15 m Sensitivity adjustment by potentiometer Modulated, infrared light 850 nm Supply voltage: 10 to 30 VDC Output: 100 mA, NPN or PNP preset Make and break switching function LED indication for output, stability and power ON Protection: reverse polarity, short circuit and transients Cable and plug versions Excellent EMC performance Detects presence or absence by breaking the light beam between the emitter and receiver
