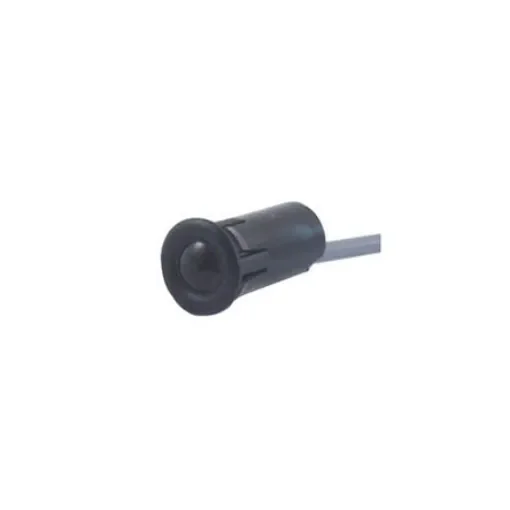

Carlo Gavazzi Through Beam Photoelectric Sensor, Barrel Sensor, 15 m Detection Range - PE12CNT15

Sensor Style = Barrel
Detection Type = Through Beam
Detection Range = 15 m
Electrical Connection = 3 Wire Cable 5 m
Maximum DC Voltage = 30V
Light Source = LED
IP Rating = IP67
Maximum Current = =20 mA
Response Time = 3.5 ms
Minimum Operating Temperature = -20°C

Carlo Gavazzi PE12 Series. Carlo Gavazzi PE12 series is a family of general purpose photoelectric sensors. They are specially designed for Elevators, Escalators, Entrance control to meet the requirements in the door market. The snap-on housing can be mounted with a wall thickness from 0.6 mm to 2.25 mm. The emitter has a mute input to turn it off for evaluation of the sensor function. Elevators, Escalators and Entrance control Range 15 m Modulated, infrared light Make or break switching LED for output indication or power supply Protection: reverse polarity, short circuit, transients Emitter mute and power adjustment
