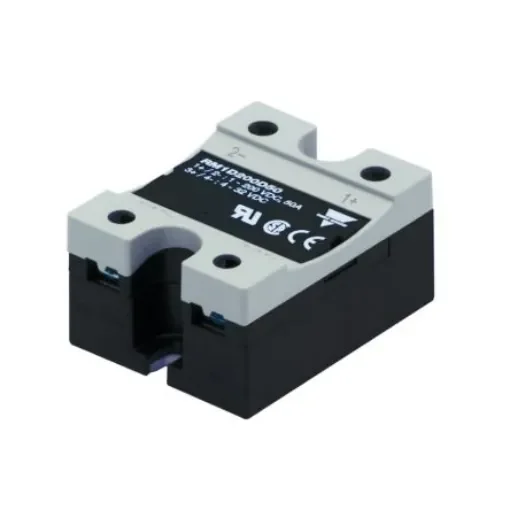

Carlo Gavazzi RM1D Series Solid State Relay, 50 A Load, Panel Mount, 60 V dc Load - RM1D060D50

Switching Type = DC Switching
Minimum Load Current = 0.005 A
Contact Configuration = SPST
Output Device = Mosfet
Series = RM1D

The Carlo Gavazzi DC switching solid state relay expands switching solutions up to 100 A for supply voltages up to 60 VDC, up to 50 A for supply voltages of maximum 200 VDC and up to 10 A for supply voltages of maximum 500 VDC. The switching is controlled by a DC voltage in the range of 4 to 32 V. An LED indicates control voltage presence on the SSR. It is an ideal solution when switching response times, from ON to OFF and vice versa, are critical to the application.Rated output voltage: 60 VDC Max. rated current (with heatsink): 50 ADC Low power dissipation output Mosfet Switching frequency up to 1000 Hz LED for control presence indication Self-lifting terminals Housing free of moulding mass Fast response times to switch ON and OFF
