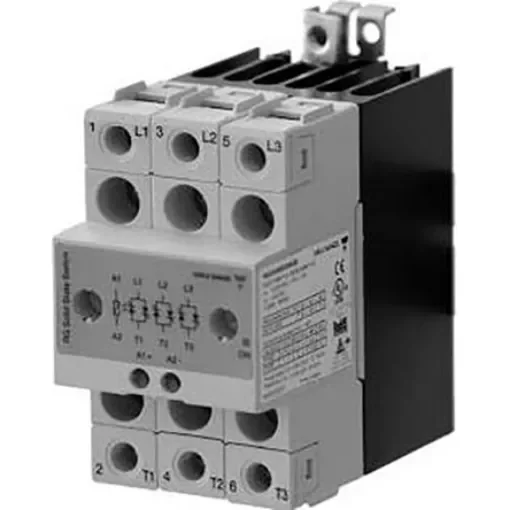

Carlo Gavazzi RGC Series Solid State Relay, 25 A Load, DIN Rail Mount, 660 V ac Load, 190 V dc, 275 V ac Control - RGC3A60A25KKE

UL, cUL Listing. Type RGC2 and RGC3, 3-Phase with Integrated Heatsink. The RGC2 and RGC3 type solid state relays have been designed to replace mechanical contactors especially when there is a high switching frequency. They are available with various options including either 2 or 3 pole. Switch ON occurs at the voltage zero cross and switch OFF occurs at the current zero cross. Control voltage presence is indicated by a green LED indicator. Output overvoltage protection comes in the form of an integrate varistor. Features: 2-pole ; 3-pole AC switching solid state contactors Product width up to 70mm Rated operational voltage: up to 600 V ac Rated operational current: up to 75A ac Control voltages: 5 to 32 V dc, 20 to 275 Vac (24 to 190 Vdc) Motor ratings up to 11kW at 400 V ac, 25HP at 600 Vac Integrated varistor protection on output Optional monitoring for SSR and load malfunction (RGC.M) EMR alarm output and auxiliary output (RGC.M) Controlled fan operation for versions with integrated fan 100kA Short Circuit Current Rating according to UL508 DIN or panel mount
