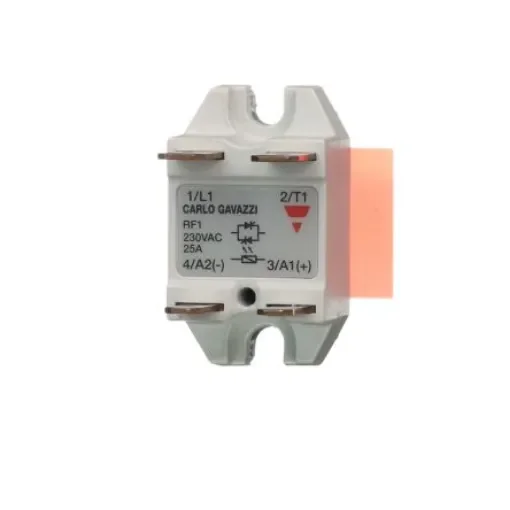

Carlo Gavazzi RF1 Series Solid State Relay, 25 A Load, Chassis Mount, 280 V ac Load, 18 V dc Control - RF1A23M25

Mounting Type = Chassis Mount
Maximum Load Voltage = 280 V ac
Maximum Control Voltage = 18 V dc
Switching Type = Zero Cross
Minimum Load Current = 150 mA
Series = RF1
Dimensions = 21.1 x 24 x 35.6mm
Minimum Operating Temperature = -30°C

AC switching Solid State Relay Switching through back to back thyristors Long lifetime through reduced stress on output chip Operational ratings: up to 280 VAC, 25 AAC Control voltage: 5 VDC, 12 VDC, 24 VDC LED for control status indication Integrated overvoltage protection on output Opto isolation input to output 3750 VAC 100k cycles endurance test according to UL508 Pre-attached thermal interface to SSR backplate
