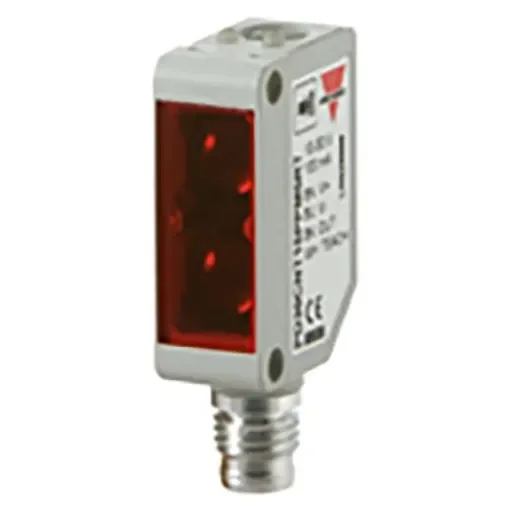

Carlo Gavazzi Retroreflective Photoelectric Sensor, Miniature Sensor, 2 m Detection Range - PD30CNG02PPM5RT
Compact retroreflective sensor with 2m detection range and programmable output for versatile applications.
Manufacturer part number:
PD30CNG02PPM5RT
Only Ships to:
France, Monaco, Italy
For shipping outside these regions, please contact customer support.
Sensor Style = Miniature
Detection Type = Retroreflective
Detection Range = 2 m
Output Type = PNP NO/NC
Electrical Connection = M8 4 Pin Connector
Maximum DC Voltage = 30V
Terminal Type = M8 Connector
Light Source = LED
IP Rating = IP67
Maximum Current = 30 mA
Response Time = <500 µs
Housing Material = ABS°C
The PD30CNG02 sensor family comes in a compact 10 x 30 x 20 mm reinforced PMMA/ABS housing. The sensors are useful in applications where detection of transparent objects are needed. Compact housing and high power LED for excellent performance size ratio. The Teach-In function for adjustment of the sensitivity makes the sensors highly flexible. The output type is preset (NPN or PNP), and the output switching function is programmable (NO or NC).A remote teach feature allow the sensor to be set up from e.g. a PLCMiniature sensor range Range: 2 m, with reflector Sensitivity adjustment by Teach-In programming Modulated, red light 617 nm Supply voltage: 10 to 30 VDC Output: 100 mA, NPN or PNP preset Make and break switching function programmable LED indication for output, stability and power ON Protection: reverse polarity, short circuit and transients Cable and plug versions Excellent EMC performance Remote teach features
