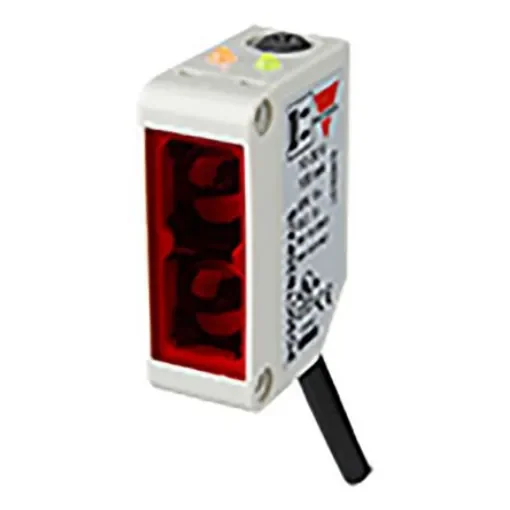

Carlo Gavazzi Diffuse Photoelectric Sensor, Miniature Sensor, 200 mm Detection Range - PD30CTB20PAIS
Compact photoelectric sensor with 200mm detection range and adjustable sensitivity for precise applications.
Manufacturer part number: PD30CTB20PAIS
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
The PD30CTB20 sensor family comes in a compact 10 x 30 x 20 mm reinforced PMMA/ABS housing. The sensors are useful in applications where high accuracy detection as well as small size is required. Compact housing and high power LED for excellent performance-size ratio. The potentiometer function for adjustment of the sen-sitivity makes the sensors highly flexible. The output type is preset (NPN or PNP), and the output switching function is NO and NC out-Put.Miniature sensor range Range: 200 mm Sensitivity adjustment by top potentiometer Modulated, infrared light 850 nm Supply voltage: 10 to 30 VDC Output: 100 mA, NPN or PNP preset Make and break switching function LED indication for output, stability and power ON Protection: reverse polarity, short circuit and transients Excellent EMC performance Exellent colour matching
