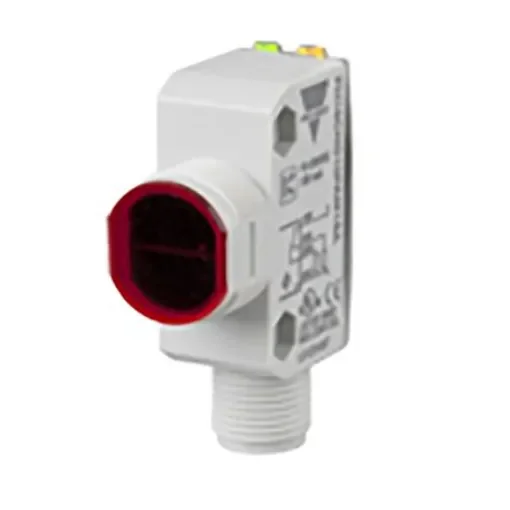

Carlo Gavazzi Diffuse Photoelectric Sensor, Miniature Sensor, 1 m Detection Range - PH18CND10PAM1SA

The PH18CND10.. is part of a family of inexpensive general purpose diffuse reflective sensors in industrial standard 18 mm cylindrical and square ABS housing. The sensors are useful in applications where high accuracy detection as well as small size is required. Compact housing and high power LED for excellent performance size ratio. The potentiometer used for adjustment of the sensitivity makes the sensors highly flexible. The output type is NPN or PNP and the output switching function is NO and NC.Miniature sensor range Range: 1 m Sensitivity adjustment by potentiometer Modulated, red light 625 nm Supply voltage: 10 to 30 VDC Output: 100 mA, NPN or PNP, N.O & N.C LED indication for output, stability and power ON Protection: reverse polarity, short circuit and transients Cable, plug and pigtail versions Excellent EMC performance
