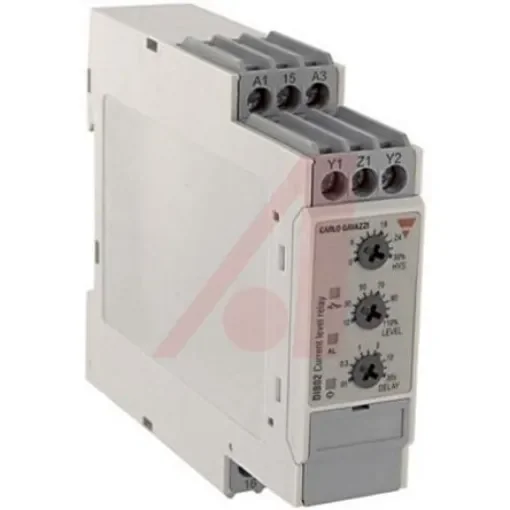

Carlo Gavazzi Current Monitoring Relay, 1 Phase, SPDT, Maximum of 4 V ac, 150 mV ac/dc, DIN Rail - DIB02CB23150MV
Ensure reliable voltage monitoring with Carlo Gavazzi's 1-phase relay, featuring adjustable limits and LED indicators.
Manufacturer part number: DIB02CB23150MV
Free shipping
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Over Voltage - Over Current Monitoring Relay. Monitoring relays from Carlo Gavazzi can also be used as 1-phase or 3- phase over current monitoring relays when connected with MI or MP current transformers.Owing to the built-in latch function, the ON-position of the relay output can be maintained. The red LED indicates the alarm status. AC/DC over voltage monitoring relay Selection of measuring range by DIP-switches Measuring ranges: 2 to 20 VAC/DC, 5 to 50 VAC/DC, 20 to 200 VAC/DC, 50 to 500 VAC/DC, 0.4 to 4 Vp AC Adjustable voltage limit on relative scale Adjustable hysteresis Programmable latching at set level Output: 8 A SPDT relay normally de-energized LED indication for relay and power supply ON Galvanically separated power supply Panel and screw termination options available
