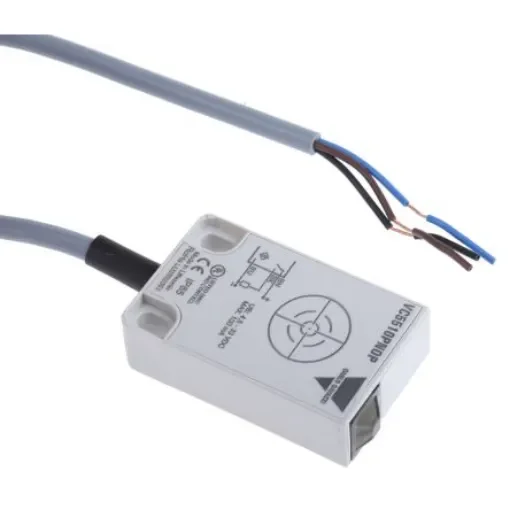

Carlo Gavazzi Capacitance Switch Level Sensor, PNP Output, Chassis Mount, ABS, Polycarbonate Body - VC5510PNOP
Efficiently control water levels with this reliable Carlo Gavazzi capacitance level sensor.
Manufacturer part number: VC5510PNOP
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Device Type = Capacitance Switch
Mounting Type = Chassis Mount
Switch Output = PNP
Body Material = ABS, Polycarbonate
Cable Length = 1.5m
Minimum Operating Temperature = 0°C
Maximum Operating Temperature = +50°C
Maximum DC Voltage = 30V
Maximum Current = 100 mA
Carlo Gavazzi Level SensorThe Carlo Gavazzi capacitive level sensor has to sense range from 2mm to 10mm and it can be adjustable via a single turn potentiometer. It comes in a flat-pack housing, It is easy mounting with two M4 screws. It is 35mm wide and 55mm long. Its supply voltage ranges between 5VDC and 30VDC.Features and BenefitsLED indication when activated Output is DC 100mA, PNP type Power ON delay Max 40ms (No delay version), Max 5s (ON/OFF delay versions) No-load supply current is less than 10mA Housing material is grey, ABS and polycarbonateApplicationsWhirlpools for switching ON/OFF the heating element Starting and stopping the air pumps Controlling the level of the water, disinfection fluid, etc.CertificationsUL approved CE certified IP65 rated
