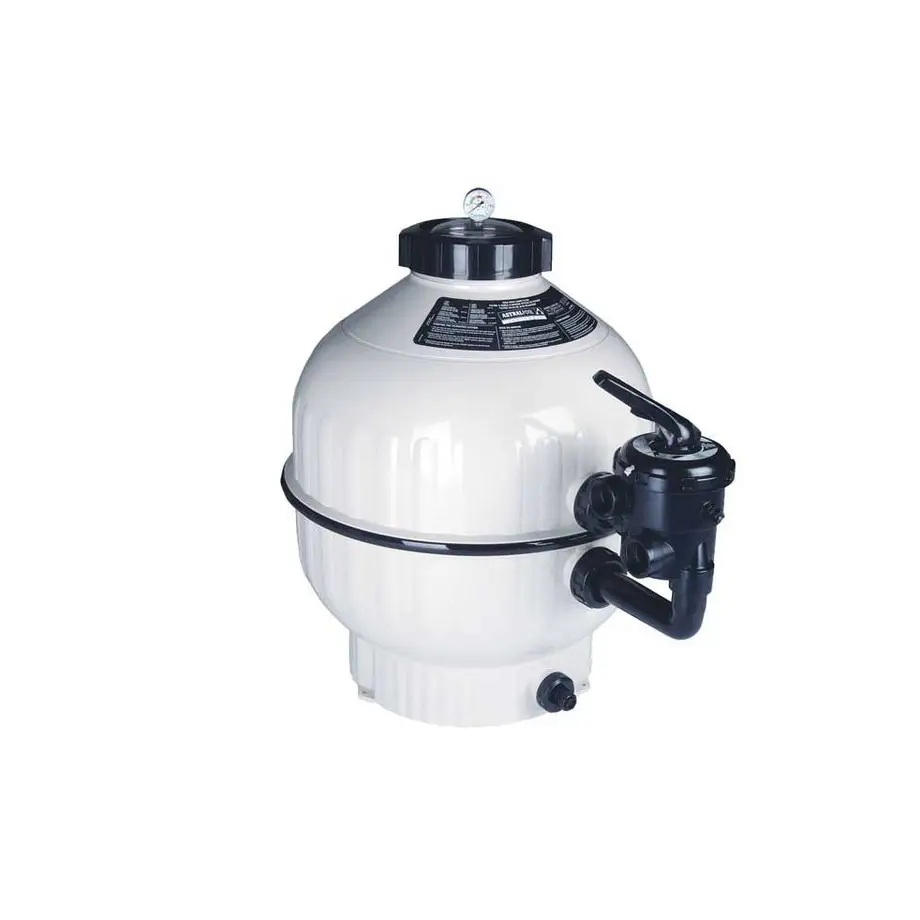

Cantabric sand filter ø900-30m³/h 10-year warranty
The Cantabric sand filter is THE SOLUTION if you want a filter with an innovative design combined with exceptional robustness.
This filter is made in two parts from injected thermoplastic, then welded. The Cantabric filters are then equipped with a collector and an unalterable plastic diffuser. The filters obtained offer total anti-corrosion protection and are virtually maintenance-free. The Cantabric filters are also characterized by an innovative design that gives them a unique personality.Tank guaranteed for 10 years.
Filter Description
- Transparent cover facilitating visual inspection and access to the inside of the filter.- Collector and diffuser for better continuous performance.- Manual air purge to expel air from inside the filter if needed.- Integrated 3/4" manual water purge in the filter's sand purge cap, allowing for drainage without sand loss.- The lower part is equipped with a collector arm ensuring balanced flow and effective washing of the filter.- Filter wash control manometer.- Base of over 225 mm facilitating handling and loading of sand for the 900 mm model. Other models in the range have an opening of over 117 mm.NB :- The 900 mm filter is delivered without a valve- All filters are delivered without filter media (recommended grain size 0.4 - 0.8)Technical specifications
| Model | Cantabric 9m³/h | Cantabric 14m³/h | Cantabric 21m³/h | Cantabric 30m³/h |
| Diameter (mm) | 500 | 600 | 750 | 900 |
| Height (mm) H | 800 | 875 | 1045 | 1215 |
| Flow rate (m³/h) | 9 | 14 | 21 | 30 |
| Sand load (kg) | 100 | 150 | 300 | 350 |
| Connections (mm) | 50 | 50 | 63 | 75 |
| Dimension M (mm) | 415 | 445 | 575 | 675 |
| Dimension N (mm) | 290 | 320 | 345 | 405 |
| Weight (Kg) | 12 | 14 | 24 | 34 |
|
