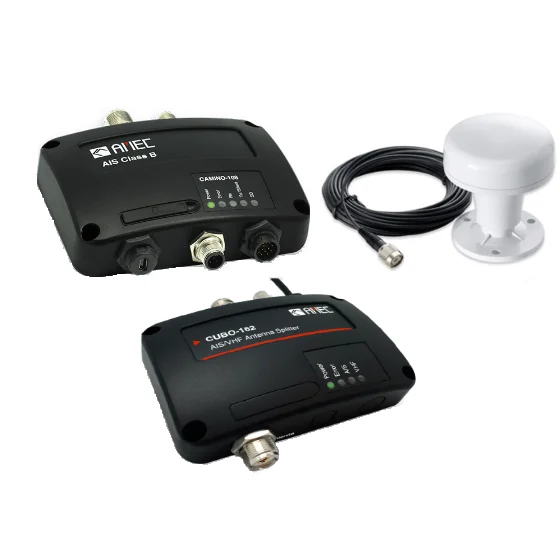

Camino-108: Class B Ais Transponder USB-NMEA0183-N2K

The Camino-108 is a compact Class B AIS transponder for effective collision avoidance and data sharing.

GTIN: 4713095730412

SCHEMA SANS SPLITTER	SCHEMA AVEC SPLITTER

CAMINO-108 is the class B AIS transponder next generation from AMEC, allowing you to transmit your data to other ships equipped with AIS, and receive their data via a card reader or a PC, in order to create a collision avoidance system.

CAMINO-108 has been designed to provide the solution of a high-performance AIS transponder. The Camino 108 is optimized to be more compact and robust, and now takes up half the size of the previous generation. The integrated 50 channel GPS for indoors with 3 meters of cable will provide the precise position of our vessel (passive antenna optional)

The dual channel receivers allow for the monitoring of vessels with a transponder including class A, class B, AtoN, SART.

Its NMEA2000, NMEA0183 and waterproof USB ports ensure simple integration with trackers and PCs. The housing for an SD card facilitates the recording of AIS data.

OPTIONAL GA-22 EXTERNAL GPS

The GPS antenna is designed to meet the rigorous requirements of the marine environment outdoors.

Its UV resistant housing is IP67 waterproof. The LNA (low noise amplifier) high performance integrated ensures excellent sensitivity. The GA-22 has 2 mounting options: pole mount and base mount. It features a 10 meter RG174 cable which facilitates routing and installation

It can also replace other navigation devices. It has been tested with AMEC AIS transponders and has passed all relevant environmental tests.

OPTIONAL CUBO-162 SPLITTER

CUBO-162 is the next generation AIS antenna splitter from AMEC used to share a single VHF antenna for VHF radio and the AIS transponder or receiver.

It also provides a feed for FM radio.

For optimized range of your VHF radio and your AIS device, the splitter presents zero insertion loss on the receive path and ultra-low insertion loss on the transmit path.Its built-in safety feature ensures priority for VHF radio operation even if the splitter is turned off. The built-in test function provides simple diagnostics in case of antenna issues.

With a durable design and compact housing, the CUBO-162 is the best companion for your AIS transponder.
