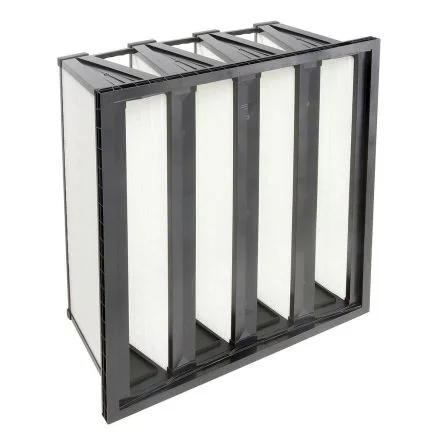

Camfil Opakfil ES Series Glass Fibre Compact V-Type Filter, F9 Grade, 592 x 592 x 296mm - 2511.17.5001

Filter Type = Compact V-Filter
Nominal Dimensions = 592 x 592 x 296mm
Actual Dimensions = 592 x 592 x 296mm
Media Area = 17m²
Filter Grade = F9
Maximum Air Flow = 3400m³/h
Initial Pressure Drop = 90Pa
Final Pressure Drop = 450Pa
Colour = White
Case Material = ABS, Polypropylene
Media Material = Glass Fibre
Actual Depth = 296mm
Actual Width = 592mm

Tested in accordance with EN779:2012 Eurovent Certified. Opakfil ES Compact Bag Filters. Camfil Opakfil ES compact bag filters provide high efficiency filtration combined with very low energy consumption and compact size. Opakfil ES can be used in any air conditioning application including preparatory filtration in cleanrooms and is also especially suitable for low-energy buildings. High efficiency Low energy costs Compact size Long operating life Light and robust Less filter changes Aerodynamic radial design Incinerable Polypropylene and ABS frame; flange thickness 25 mm Glass fibre media Hot melt bead separators Polyurethane sealant Efficiency EN779:2012 Filter class: M6, F7, F8, F9 Recommended final pressure drop: 450 Pa (suggested economical change point 300 Pa) Temperature: 70ºC maximum in continuous service
