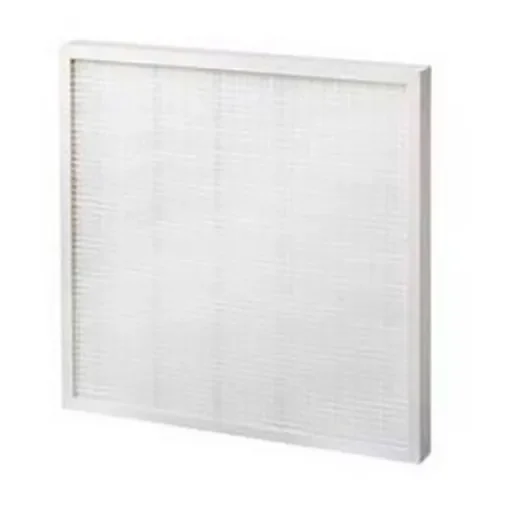

Camfil EcoPleat Green Series Glass Fibre Paper Compact Pleated Panel Filter, M5 Grade, 592 x 592 x 48mm - 1019.11.03

Filter Type = Compact Pleated Panel
Nominal Dimensions = 592 x 592 x 48mm
Actual Dimensions = 592 x 592 x 48mm
Media Area = 5.3m²
Filter Grade = M5
Maximum Air Flow = 2900m³/h
Initial Pressure Drop = 65Pa
Final Pressure Drop = 350Pa
Case Material = ABS Plastic
Media Material = Glass Fibre Paper
Actual Depth = 48mm
Actual Width = 592mm

CREO. EcoPleat Green Panel Filters. Ecopleat Green are CREO approved ultra compact, ultra light panel filters with a large surface area and long operating life for less frequent changes. Suitable applications include: Air conditioning or industrial processing, mini air conditioning systems, individual modules, ventilation equipment. Type: High efficiency compact filter Frame: Plastic Media: Wet-laid glass fiber paper Separator: Hot melt glue Sealant: Polyurethane EN779:2012 filter class:M5, M6, F7 and F8 Recommended final pressure drop: 350 Pa (suggested economical change point 250 Pa) Temperature: 70ºC Relative humidity: 100% RH
