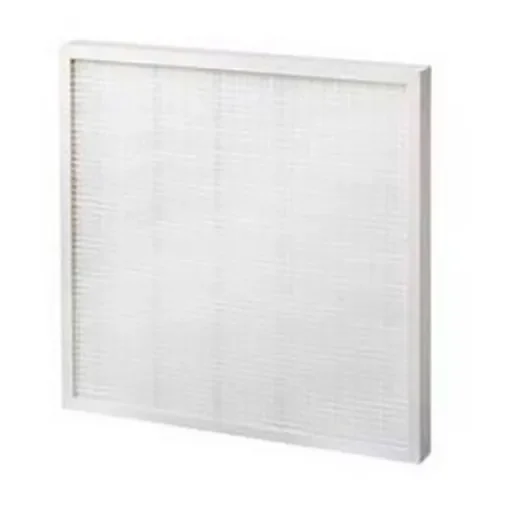

Camfil EcoPleat Green Series Glass Fibre Paper Compact Pleated Panel Filter, F7 Grade, 592 x 592 x 48mm - 1021.11.03

Filter Type = Compact Pleated Panel
Nominal Dimensions = 592 x 592 x 48mm
Actual Dimensions = 592 x 592 x 48mm
Media Area = 5.8m²
Filter Grade = F7
Maximum Air Flow = 2900m³/h
Initial Pressure Drop = 120Pa
Final Pressure Drop = 350Pa
Case Material = ABS Plastic
Media Material = Glass Fibre Paper
Actual Depth = 48mm
Actual Width = 592mm

Camfil Panel FilterThe Camfil EcoPleat green ultra-compact, ultra-light F7 grade panel filters with a large surface area and long operating life for less frequent changes.Features and BenefitsHigh efficiency Long operating life Plastic frame Wet-laid glass fibre paper media Hot melt glue separator Polyurethane sealant Maximum relative humidity is 100% RH Maximum airflow is 2900m³/h Final pressure drop is 350Pa Actual dimensions is 592mm x 592mm x 48mmApplicationsAir conditioning Industrial processing Ventilation equipment Individual modules
