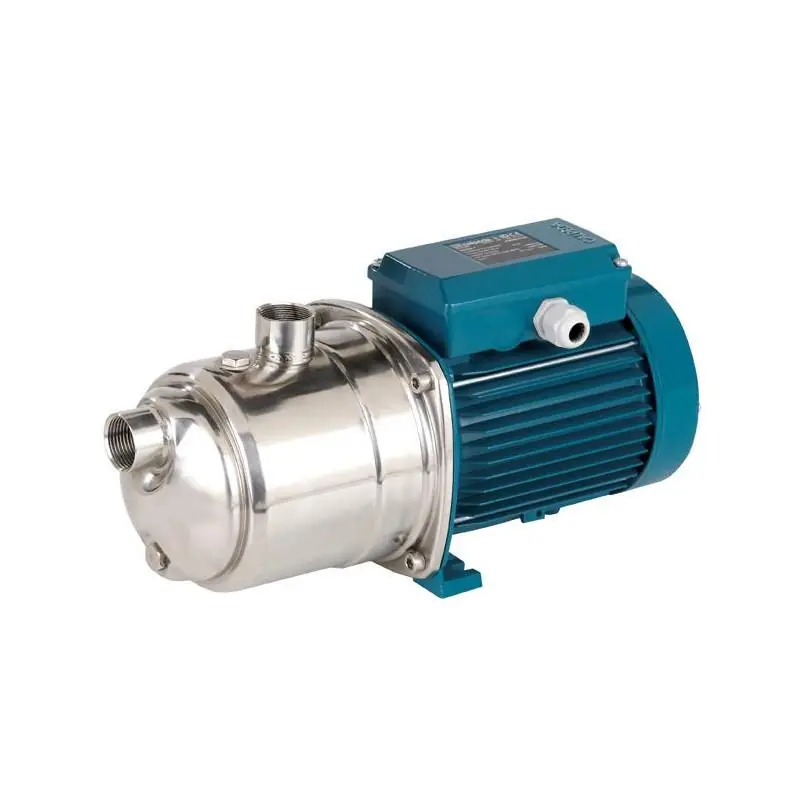

The Calpeda NGXM 4 is a self-priming monobloc pump designed for efficient water handling in various applications. It features a built-in ejector, ensuring reliable performance in both domestic and light industrial settings.
- Self-Priming Capability: Designed to draw water from wells and other sources without the need for manual priming.
- Built-in Ejector: Enhances suction performance, allowing the pump to handle water containing air or other gaseous substances.
- Stainless Steel Construction: Provides durability and resistance to corrosion, ensuring a long service life.
- Integrated Capacitor: Located inside the terminal box, it simplifies installation and maintenance.
- Thermal Protection: Safeguards the motor against overheating, enhancing reliability.
Technical Specifications:
- Flow Rate: Up to 83.3 liters per minute (5 cubic meters per hour).
- Maximum Head: 1 bar.
- Motor Power: 1.1 kW (1.5 hp).
- Motor Speed: 2800 rpm.
- Voltage: Single-phase 230V ± 10%.
- Suction Port: G1 1/4.
- Delivery Port: G1 1/4.
- Maximum Suction Lift: 9 meters.
- Maximum Liquid Temperature: 35°C.
- Protection Class: IP54.
- Impeller Material: Brass.
Materials:
- Pump Body: Stainless steel, ensuring resistance to corrosion and durability.
- Impeller: Brass alloy, providing strength and longevity.
Compatibility Information: The NGXM 4 is suitable for applications requiring self-priming capabilities, such as:
- Water supply from wells.
- Pumping water containing air or other gaseous substances.
- Increasing water pressure in systems with a height of charge at the pump inlet.
- Boosting pressure in distribution networks (observe local regulations).
- Gardening applications.
- Washing with a water jet.
