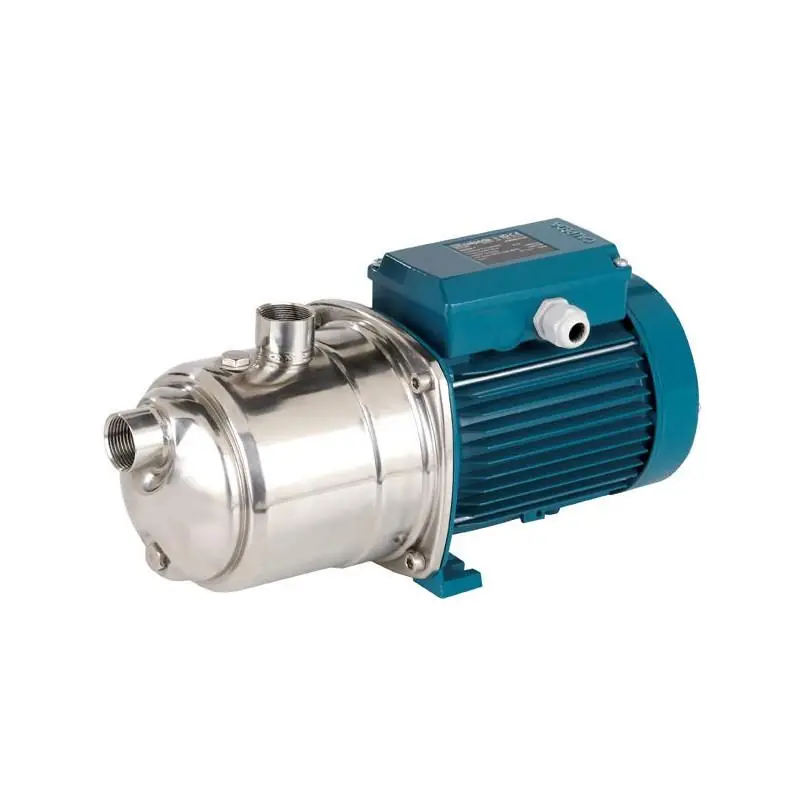

The Calpeda NGXM 3/A is a self-priming monobloc jet pump designed for efficient water supply and pressure boosting applications. It features a high-quality stainless steel body and a brass impeller, ensuring durability and minimal environmental impact.
- Self-Priming Capability: Designed to draw water from wells and lift water containing air or other gases.
- Pressure Boosting: Increases water pressure from flooded suction applications and serves as a pressure booster for central water systems with low pressure.
- Garden and Cleaning Applications: Suitable for garden irrigation and washing with a water jet.
- Environmental Considerations: Constructed with minimal use of plastic materials, featuring a stainless steel casing and brass impeller.
Technical Specifications:
- Maximum Flow: 50 liters per minute
- Maximum Head: 53 meters
- Input Voltage: 230V single-phase, 50Hz
- Power Output: 0.55 kW (0.75 HP)
- Suction Port: 1 inch
- Delivery Port: 1 inch
- Maximum Suction Lift: 8 meters
- Maximum Liquid Temperature: 35°C
- Protection Class: IP 54
- Automatic Thermal Protection: Yes
- Capacitor: Integrated
- Impeller Material: Brass
- Pump Design: Horizontal
Materials:
- Pump Body: Stainless Steel
- Impeller: Brass
Compatibility Information: The NGXM 3/A is suitable for applications requiring self-priming capabilities, such as drawing water from wells, lifting water containing air or other gases, increasing water pressure from flooded suction applications, and serving as a pressure booster for central water systems with low pressure. It is also appropriate for garden irrigation and washing with a water jet.
