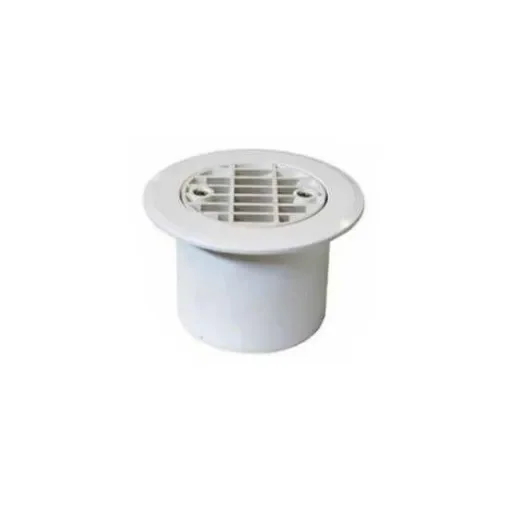

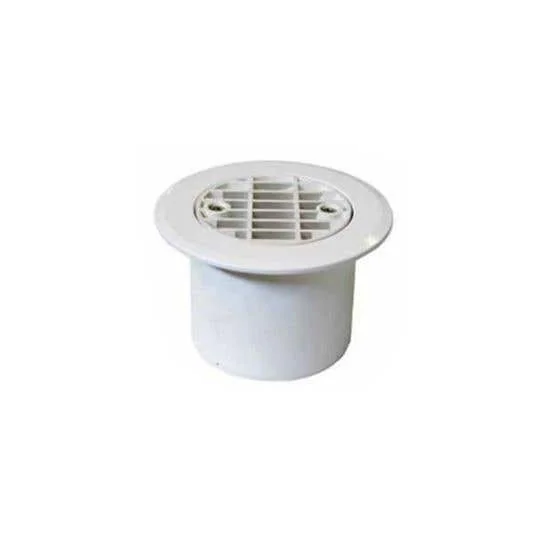

The White Multiflow Return Inlet is designed to enhance water circulation in concrete pools, ensuring uniform water distribution through its innovative Multiflow system. Crafted from high-quality white ABS, it offers excellent resistance to chemicals and UV rays, contributing to its durability and longevity.
- Easy Installation: Designed for straightforward installation, compatible with wall penetration.
- Durable Construction: Made from white ABS material, ensuring resistance to chemicals and UV rays.
- Adjustable Flow Rate: The Multiflow system allows for adjustable flow rates, with options for 14 mm, 20 mm, and 25 mm diameters, enabling customization based on pool requirements.
- Compliance with Standards: Meets EN 13451-1 standards, ensuring quality and safety.
Technical Specifications:
- Material: White ABS
- Flow Rate: Up to 7 m³/h, depending on the selected diameter.
- Outer Diameter: 2 inches
- Inner Diameter: 50 mm
- Standard Compliance: EN 13451-1
Materials:
- Body: White ABS
- Grille: White ABS
Dimensions:
- Outer Diameter: 2 inches
- Inner Diameter: 50 mm
Compatibility Information:
The White Multiflow Return Inlet is compatible with concrete pools and is designed for installation with wall conduits. It can be glued to a Ø50 mm PN10 pipe in concrete pools, with a water outlet through a Ø20 mm hole.
Package Contents:
- Multiflow return inlet
- Diameter selection punch
- Installation manual
