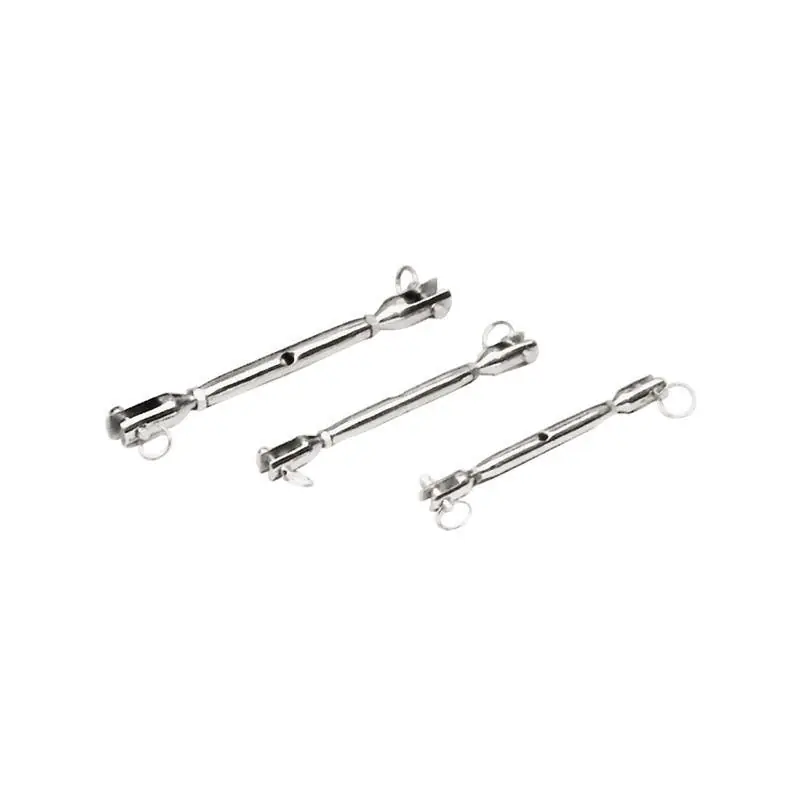

The Stainless Steel Rigging Screw by Cabesto is a high-quality component designed for marine applications, ensuring durability and reliability in various boating environments.
- Material: Constructed from AISI 316 stainless steel, offering excellent resistance to corrosion and wear.
- Thread Sizes: Available in 6 mm, 10 mm, and 12 mm thread sizes to accommodate different rigging requirements.
- Breaking Strength: Provides robust strength, with breaking strengths ranging from 1,400 kg to 5,000 kg, depending on the model.
Technical Specifications
- Thread Size: 6 mm, 10 mm, or 12 mm
- Closed Length:
- 6 mm thread: 140 mm
- 10 mm thread: 200 mm
- 12 mm thread: 245 mm
- Open Length:
- 6 mm thread: 200 mm
- 10 mm thread: 285 mm
- 12 mm thread: 358 mm
- Breaking Strength:
- 6 mm thread: 1,400 kg
- 10 mm thread: 3,450 kg
- 12 mm thread: 5,000 kg
Materials
AISI 316 stainless steel, known for its superior corrosion resistance, making it ideal for marine environments.
Dimensions
- 6 mm Thread:
- Closed Length: 140 mm
- Open Length: 200 mm
- 10 mm Thread:
- Closed Length: 200 mm
- Open Length: 285 mm
- 12 mm Thread:
- Closed Length: 245 mm
- Open Length: 358 mm
Compatibility Information
Suitable for various rigging applications in boating, including sailboats and yachts, where reliable and durable rigging components are essential.
