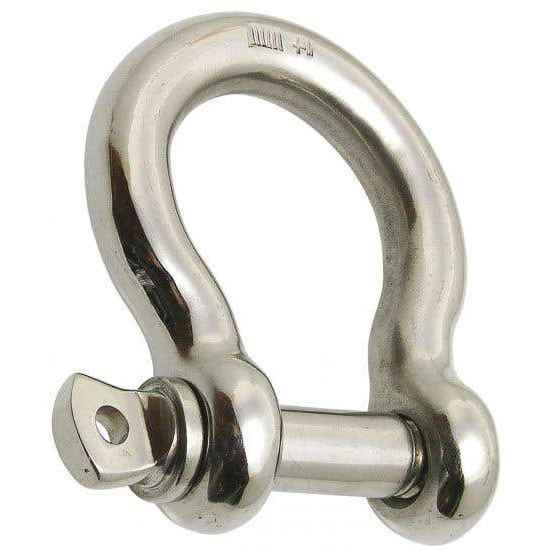

The Manille Lyre Inox by CABESTO is a stainless steel bow shackle designed for marine applications, offering durability and reliability.
- Material: Forged from high-quality stainless steel AISI 316, providing excellent resistance to corrosion and ensuring longevity in marine environments.
- Design: Lyre-shaped with a screw pin, facilitating easy attachment and detachment.
- Finish: Polished mirror finish for enhanced aesthetics and additional corrosion resistance.
Technical Specifications:
- Diameter: 14 mm
- Dimensions:
- A (Width): 28 mm
- B (Height): 50 mm
- R (Internal Width): 14 mm
- L1 (Length): 56 mm
- Working Load Limit (WLL): 600 kg
- Safety Factor: 5:1
Materials:
- Body: Stainless steel AISI 316
- Pin: Stainless steel AISI 316
Compatibility Information: Suitable for various marine applications requiring secure and corrosion-resistant connections.
