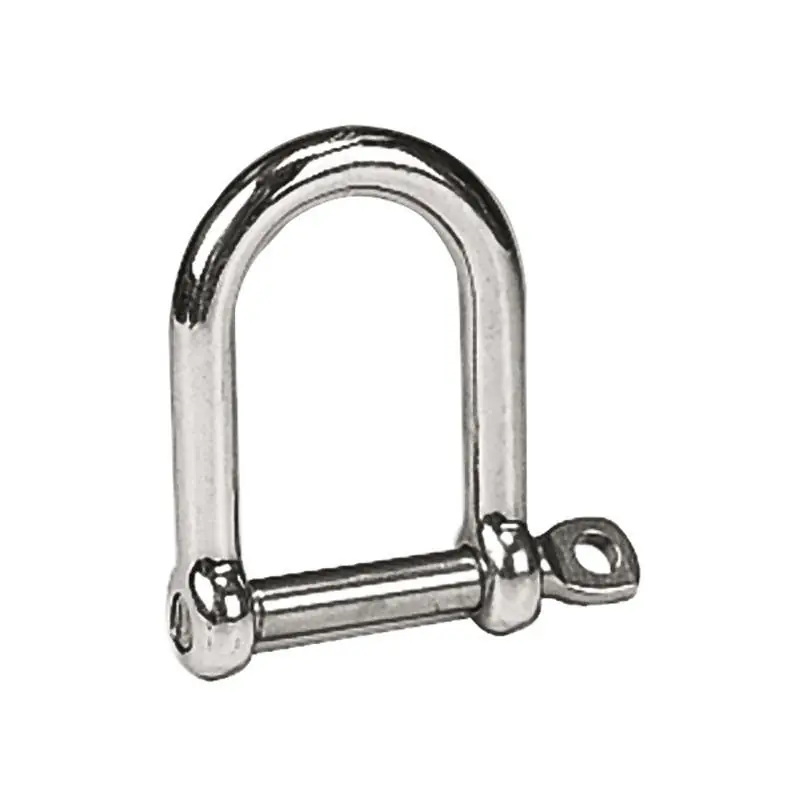

The Manille Large Inox D10 is a stainless steel shackle designed for marine applications, offering robust performance and durability.
- Material: Constructed from high-quality AISI 316 stainless steel, ensuring excellent resistance to corrosion, even in harsh marine environments.
- Design: Features a large opening, making it suitable for connecting thick ropes, chains, or cables.
- Safety Mechanism: Equipped with an autoblocking system that prevents accidental unscrewing, enhancing operational safety.
Technical Specifications:
- Diameter: 10 mm
- Length: 60 mm
- Width: 40 mm
- Working Load Limit (WLL): 1,280 kg
- Breaking Load: 4,000 kg
- Weight: Approximately 127 grams
Materials:
- Body: AISI 316 stainless steel
- Pin: AISI 316 stainless steel
Dimensions:
- Length (L): 60 mm
- Width (A): 40 mm
- Diameter (D): 10 mm
Compatibility Information:
Ideal for use in marine environments, the Manille Large Inox D10 is compatible with various ropes, chains, and cables commonly used in boating and maritime activities.
