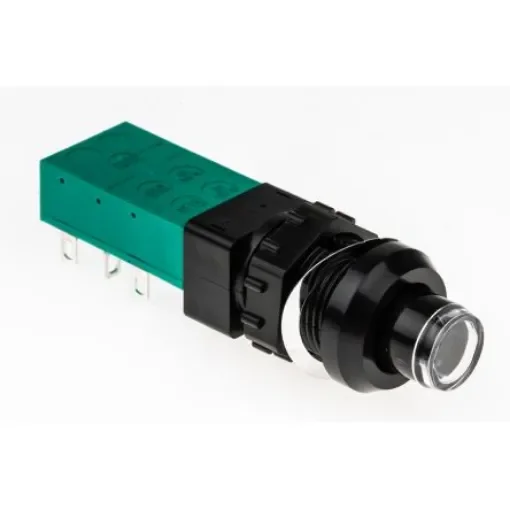

C & K Push Button Switch, Latching, Panel Mount, 14mm Cutout, DPDT, 250V ac - ZNE18 FA200 BK GN 2U EE L

Switch Operation = Latching
Panel Cut Out Diameter = 14mm
Mounting Type = Panel Mount
Push Button Colour = Green
Contact Configuration = DPDT
Voltage Rating = 250V ac
Push Button Style = Round
Contact Current Rating = 4 A @ 250 V ac
Contact Material = Silver Plated Brass
Manufacturer Part No. = ZNE18 FA200 BK GN 2U EE L

NE18 Series Indicating Pushbutton Switch. From C ;K, these NE18 indicating pushbuttons are particularly well suited to digital and audio applications. When the switch is depressed, the button changes from black to either green or orange depending on the chosen version. As they use a mechanical system that requires no electrical energy, these indicating pushbutton switches are suitable for portable instruments. Features and Benefits:. • Integral shutter mechanism • Silver plated brass contacts • Electrical life: >30000 operations • 14mm panel cut out • 55mm behind panel depth. The NE18 Series includes:. • Stock number ; 0339-443 0339-443 is the orange version • Stock number ; 0339-897 0339-897 is the green version
