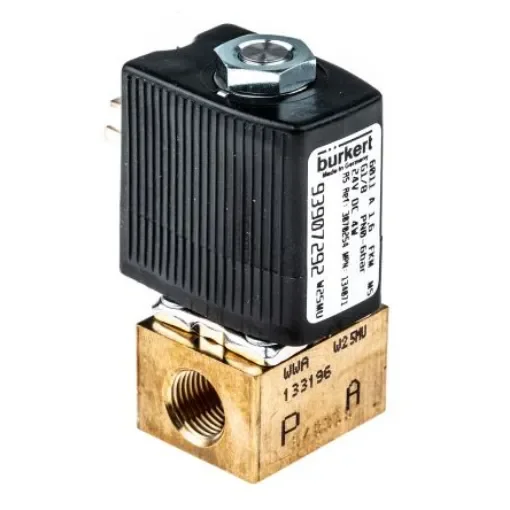

Burkert Solenoid Valve 134071, 2 port(s) , NC, 24 V dc, 1/8in

Supply Voltage = 24 V dc
Number of Ports = 2
Connection Size = 1/8in
Connection = 1/8 in G Female
Operation = Direct
Default Valve Position = NC
Suitable Applications = Liquid, Neutral Gas, Technical Vacuum
Type = 2/2
Orifice Diameter = 1.6mm
Body Material = Brass
Maximum Working Pressure = 6 bar
Operating Temperature Range = Maximum of +55 °C
Maximum Operating Temperature = +55°C
Maximum Opening Time = 10ms

Burkert Solenoid ValveThe Burkert 2-port 1/8in G female solenoid valve is a screwed coil system. It has high-quality seal material FPM as standard. The stopper and plunger guide tube are welded together to enhance pressure resistance and leak tightness. Its maximum opening and closing time ranging between 15 milliseconds and 20 milliseconds. This valve is suitable to use with water, neutral fluids air natural, gases, oil and fats (without additives).Features and BenefitsSupply voltage is 24VDC Flow factor (Kv) is 0.06m³/h Direct-acting and compact valve with diameter of DN2.4 Brass body with a polyamide coil Coil can be changed easily with valve in place Coil can be locked in four by 90° positions or move freely in between, as required Simple and quick flange or manifold installation Quick coupling (push-in fitting) for plug-in hose connections Maximum working pressure is 6bar Power consumption is 4W Operating temperature ranging between -10°C and 55°CCertificationsIP65 rated
