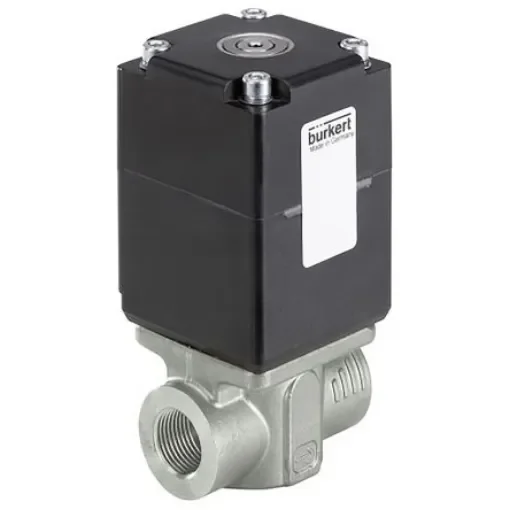

Burkert Proportional Solenoid Valve 239091, 2 port(s) , NC, 24 V dc, 1/2in

Supply Voltage = 24 V dc
Number of Ports = 2
Connection Size = 1/2in
Connection = 1/2 in G Female
Operation = Direct
Default Valve Position = NC
Suitable Applications = Liquid, Neutral Gas
Type = 2/2
Orifice Diameter = 6mm
Body Material = Stainless Steel
Maximum Working Pressure = 4 bar
Maximum Operating Temperature = +55°C
Maximum Opening Time = 25ms

2/2 Proportional Flow Valve - 2875 Series. Burkert proportional solenoid valves provide continuously adjustable and smooth control over the flow of fluid passing through them. Unlike conventional solenoid and process valves which offer only On or off control, Burkert 2875series process valves use PWM (pulse width modulation) to give you the ability to adjust the flow from 0 to 100 percent. Design features such as the frictionless installation of the valve plunger, for exceptionally accurate adjustment and the tight sealing elastomeric seat make this the ideal valve for demanding and high accuracy control. Features and Benefits. Direct acting operation Available in either brass or stainless steel Excellent response time Globe valve operating principle IP65 Plunger valve actuator 25 ms response time 16 W power consumption 900Hz PWM frequency 100% continuously rated duty cycle Repeatability of less than 0.5% of full scale Less than 5% hysteresis
