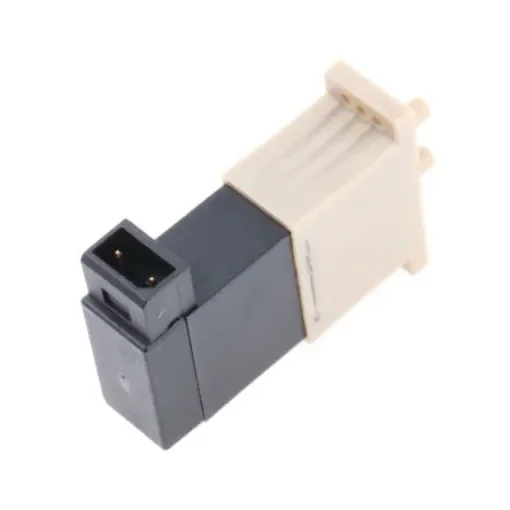

Burkert Diaphragm Electric Operated Positive Displacement Pump, 5ml/min, 200 mbar, 24 V dc - 156993

Pump Type = Diaphragm
Drive Type = Electric
Maximum Flow Rate = 5ml/min
Maximum Working Pressure = 200 mbar
IP Rating = IP40
Series = 7604
Body Material = PEEK
Supply Voltage = 24 V dc
Input Power = 1.5W
Wetted Materials = FFKM, PEEK
Output Connection Size = 2.6mm

Series 7604 Micro Pump. Diaphragm pump for continuous applications, including micro dosing, sample taking, probe preparation, etc. Flow rate to 5 ml/min High spec materials for chemical compatibility with wide range of aggressive or neutral fluids Supply voltage 24Vdc Power consumption 1.5W Pressure range 200mbar max Pump frequency 40 Hz max. Flow rate 5ml/min max. (purified water @ 22°C) Temperature range +10 to +60°C Ambient temperature +10 to +55°C Materials PEEK/FFKM Connections Spigots 2.6Ø x 9.0 mm Mounting pitch 11mm Protection class IP40 with rectangular connector plug
