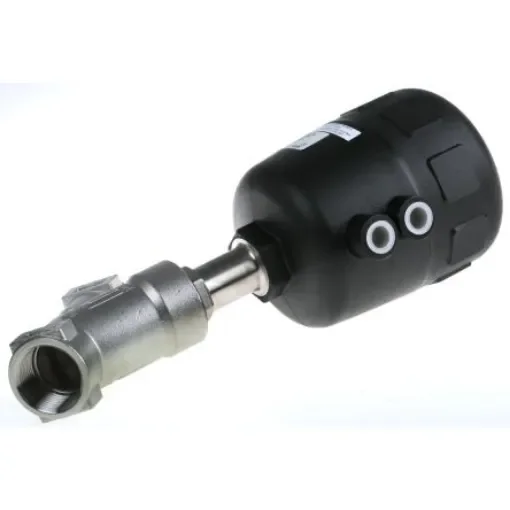

Burkert Angle type Pneumatic Actuated Valve, G 1in, 16 bar - 186488

Burkert Pneumatic ValveThe Burkert pneumatic valve with angle seat 1in G connection has normally closed (NC) configuration and is made of cast stainless steel for maximum operating pressure of 16bar. It has a 2/2-way configuration with the under-seat flow for liquids. This anti-water hammer valve employs live loaded packing and an N-seal piston actuator, all in an application proven rugged compact envelope.Features and BenefitsAmbient temperature ranging between –10°C and 60°C Flow rate is 18m³/h High flow rate because of compact design Intermediate relief Media temperature ranging between –10°C and 180°C Orifice is 25mm Polyamide actuator casing and PTFE seal material Self-adjusting spindle packing glands Wiper sealCertificationsGL approved SIL approved
