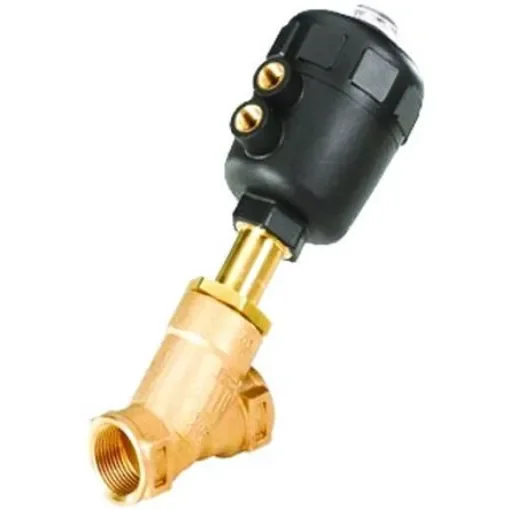

Burkert Angle type Pneumatic Actuated Valve, G 1-1/2in, 16 bar - 186487

Thread Size = 1-1/2in
Valve Type = Angle
Default Valve Position = NC
Return Type = Spring
Thread Standard = G
Maximum Working Pressure = 16 bar

EX II 2G/D T4/T=135°C CE. Valves with flow direction above the seat are best suited to gases and steam. They are only conditionally usable with liquids due to the risk of water-hammer. Series 2000, Two Way, Angle Seat Valve - Gunmetal Body. 2/2- way pneumatically operated angle seat valves. Available in both NO (Normally Open) and NC (Normally Closed) configurations and with the flow direction above or below the seat For use with neutral gases, air, steam, water and oil. 2//2-way, normally closed by spring action Polyamide actuator casing and PTFE seal material Self-adjusting spindle packing glands; wiper seal; intermediate relief High flow rates from compact designs Ambient temperature range: –10 to +60°C Media temperature range: –10 to +180°C
