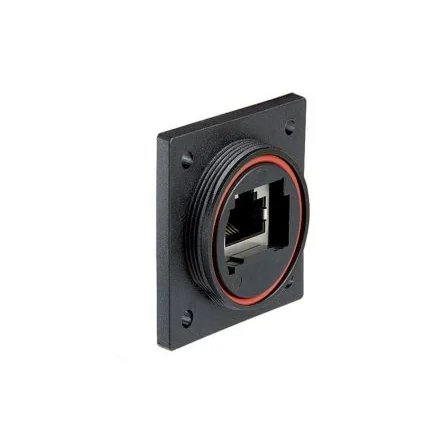

Bulgin PX0890 Series Female RJ45 Connector, Flange Mount, Cat6a Straight 1 Port
Reliable Bulgin RJ45 flange mount connector for secure Ethernet connections with IP68/IP69K protection.
Manufacturer part number: PX0890
Ethernet Connector Type = RJ45 Connector
LAN Category = Cat6a
Number of Ports = 1
Shield Type = Shielded
Orientation = Straight
IP Rating = IP68, IP69K
Length = 44.5mm
Width = 44.5mm
Depth = 33mm
Series Number = PX0890
Contact Material = Phosphor Bronze
PUR / PVC jacket on cable Shielded system Shielded coupler Shroud on RJ45 Screw coupling Rewireable flex connector PCB mounted panel connector IDC termination panel connector Earth lead version of panel adaptorFlange Mount Connector PX0890 Series Shielded CouplerFlanged Mounting Connector Water and dustproof to when mated with compatible connector Supplied with panel sealing gasket and screw sealing washers Standard RJ45 patchcord can be plugged into rear PX0870/E version has additional Earth wire PX0733 Sealing Cap available separately to maintain IP rating of unmated connectors
