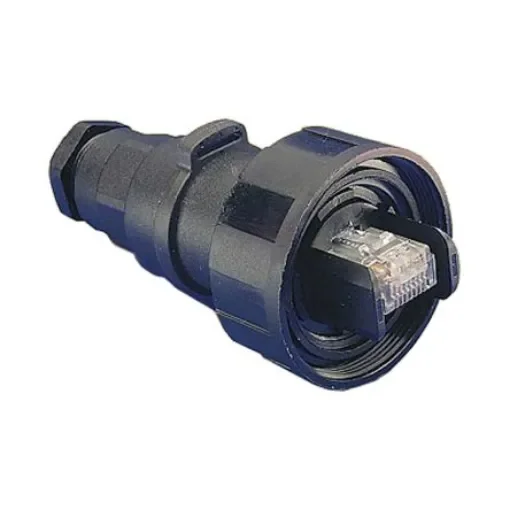

Bulgin PX0 Series Male Ethernet Connector, Cable Mount Straight - PX0834/A

Gender = Male
Mounting Type = Cable Mount
Orientation = Straight
IP Rating = IP68
Series = PX0
Contact Material = Bronze
Contact Plating = Gold

Bulgin Circular ConnectorThe Bulgin PX0 series 8-poles male circular connector RJ45 plug connection that provides high performance Cat5e Ethernet connections in harsh environments. This cable mount connector has a voltage rating of 32VAC/42VDC and current rating of up to 1.5A. This connector is made from polyester with a quick-connect mating system that ensures a secure quick connect and disconnect capabilities for use in challenging conditions. Note: Patchcords have their own technical specification. Supplied with: Shielded RJ45 plug Supplied cable glands accommodate cable diameters between 3.5 and 8mm Bulgin Buccaneer Range The Ethernet Buccaneer provides a high degree of environmental sealing for standard Cat5e RJ45 connections. It is an ideal solution to connectivity in harsh and difficult industrial areas.Features and BenefitsCrimp termination Dust and waterproof Easy assembly Operation temperature ranges between -40°C and 70°C Overall diameter is 38.1mm Overall length is 77.5mm Shielded connectors maintain required screening Straight body orientationApplicationsIndustrial automation Marine applicationsCertificationsIP68 rated
