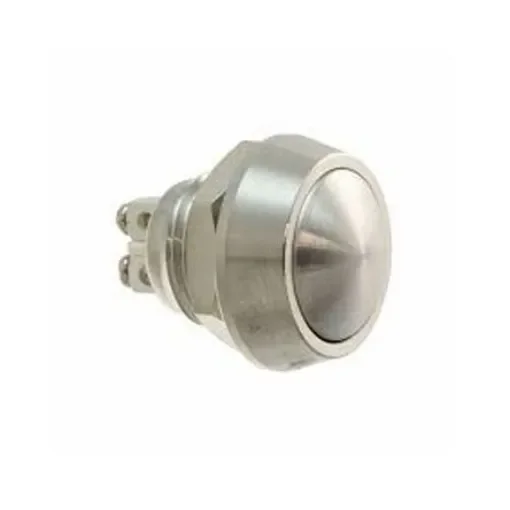

Bulgin Push Button Switch, Momentary, Panel Mount, 12mm Cutout, SPST, 36V dc, IP67 - MMP0120/SSSP

Switch Operation = Momentary
Illuminated = No
Panel Cut Out Diameter = 12mm
Mounting Type = Panel Mount
Push Button Colour = Silver
Contact Configuration = SPST
Voltage Rating = 36V dc
Push Button Style = Round
IP Rating = IP67
Contact Current Rating = 2 A
Contact Material = Silver Alloy
Contact DC Voltage Rating = 36V

Vandal Resistant Pushbutton Switches - MMP0120 Series. Features and Benefits • 12mm diameter, raised domed profile • Front Panel Sealed to IP65, some variants also available to IP67 (part codes containing 67) • Illuminated versions • Choice of Termination, depending on part code suffix: S - Screw Terminals, P - 2mm x 0.5mm Pin Terminals • Choice of body material and button material, depending on part code: - Stainless Steel body and button: /SSS - Nickel Plated Brass body and button: /NNB - Black Anodized Aluminium body: /A with PBT button in a choice of colour: RD - Red, GN - Green, BL - Blue, BK - Black
