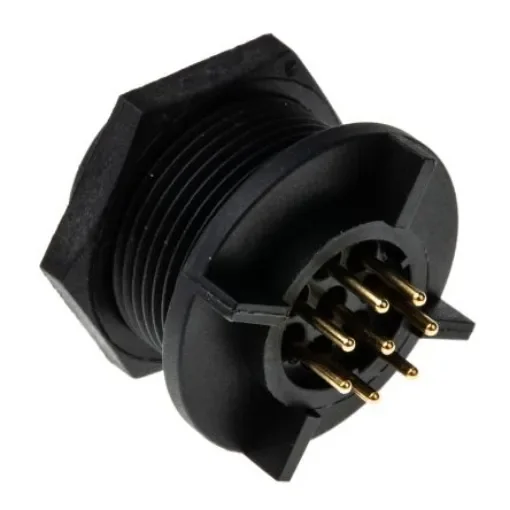

Bulgin Circular Connector, 8 Contacts, PCB Mount, Miniature Connector, Socket, Female, IP68, Buccaneer 400 Series - PX0413/08S/PC
Durable Bulgin miniature circular connector with 8 contacts, ideal for challenging environments.
Manufacturer part number: PX0413/08S/PC
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Number of Contacts = 8
Mounting Type = PCB Mount
Connector Size = Miniature
Plug/Socket = Socket
Contact Gender = Female
Termination Method = Solder
IP Rating = IP68
Current Rating = 5.0A
Body Orientation = Straight
Voltage Rating = 125.0 V
Shell Size = 19
Housing Material = Polymer
Shielded/Unshielded = Unshielded
Maximum Operating Temperature = +80°C
Bulgin Circular ConnectorThe Bulgin Buccaneer 400 series 8-poles female circular front panel mounting connector has a socket type connection. This connector has a voltage rating of 125VAC/DC and current rating is up to 5A per contact. This cable mounting connector is ideal for use in challenging conditions. The connector shell is made from glass-filled polyamide with gold-plated copper alloy contacts. Note: Ensure that the correct amperage contact is selected to match the amperage of the corresponding plug/socket Solder contacts must be ordered separatelyFeatures and BenefitsCrimp or solder termination Easy assembly, no special tools required Operation temperature ranges between -40°C and 80°C Pre-loaded PC pins Shell size is 19mm Straight body orientation Unshielded Water and dustproof Wire gauge ranges between 20AWG and 26AWGApplicationsElectrical equipment Industrial automationCertificationsIP68 rated IP69K
