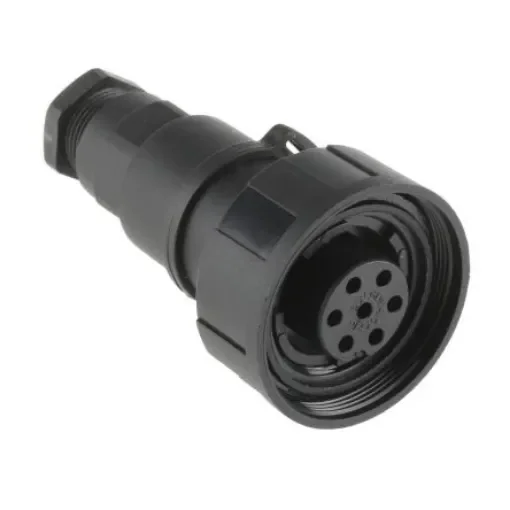

Bulgin Circular Connector, 7 Contacts, Cable Mount, Socket, Female, IP68, Standard Buccaneer Series - PX0745/S

Connector Size = Standard
Plug/Socket = Socket
Termination Method = Screw
Series = Standard Buccaneer
Voltage Rating = 250.0 V
Shell Size = 38
Housing Material = Polymer
Contact Plating = Nickel
Contact Material = Brass°C

Bulgin Circular Connector The Bulgin Buccaneer series 7-poles female circular flex connector has a socket type connection. This connector has a voltage rating of 277VAC/DC and current rating is up to 3A per contact. This connector is ideal for use in challenging conditions. The connector shell is made from glass-filled polyamide with gold-plated copper alloy contacts. The connectors also feature a positive locking mating system that means the connector cannot be mismatched. Environment The standard series of buccaneer connectors are protected to IP68 when mated. This means they are dust-tight and resistant to particle ingresses such as dust and sand. They are also waterproof, meaning they are protected from liquid ingress up to the point of submersion for a limited time. Frequently asked questions (FAQs) Q: Are there accessories available for this connector? A: There are connector caps available for standard buccaneer connectors, which maintain the IP68 sealing when mated pairs are uncoupled. The cap can also be used as a tool to aid the removal and refitting of inserts during assembly. Q: How durable is the connector? A: The standard buccaneer series of power connectors feature glass filled polyamide moulded housing that is resistant to dust, oil and saltwater. Q: What are the mating requirements of this connector? A: The buccaneer standard series cable connectors mate with corresponding in-line connectors for a cable to the cable connection, or with a panel, chassis and PCB connectors. Q: Are contacts supplied with this connector? A: The connector comes complete with contacts. Features and Benefits Screw termination Straight body orientation Cable acceptance ranges between 6mm and 8mm Easy assembly, no special tools required Insulation resistance is greater than 104Mohm Operation temperature ranges between -20°C and 70°C Positive locking key contacts Shell size is 38mm Unshielded Water and dustproof Applications Electrical equipment Industrial automation Certifications CSA certified IP68 rated UL approved VDE approved
