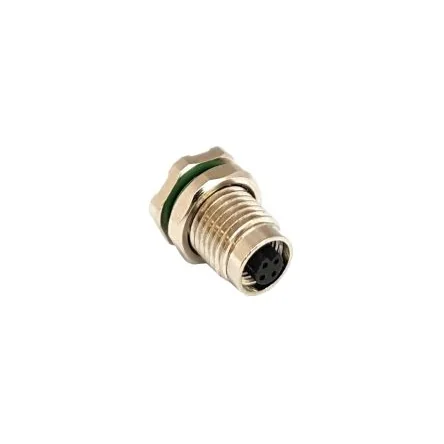

Bulgin Circular Connector, 4 Contacts, Rear Mount, M5 Connector, Socket, Female, IP67, Buccaneer M5 Series - PXMBNI05RPF04APC

Number of Contacts = 4
Mounting Type = Rear Mount
Connector Size = M5
Plug/Socket = Socket
Contact Gender = Female
Termination Method = PCB
IP Rating = IP67
Current Rating = 1.0A
Body Orientation = Straight
Coding = A
Mating Type = Threaded
Housing Material = Nickel
Pole Format = 4
Strain Relief = No
Contact Material = Bronze°C

The most compact connector type in the M-Series range, Bulgins waterproof M5 sensor connectors come in straight and angled forms with PVC or PUR over molded cable option s and a variety of panel mount receptacles. With an industry standard screw coupling mechanism and IP67 rating, this circular connector product line is particularly suited to automotive, process control, commercial electronics & instrumentation applications that require reliable and robust miniature sensors.Secure & reliable screw locking mechanism Robust PVC & PUR overmolded cables Cable length from 1m - 15m High degree of environmental protection - IP67 rated Straight & right angled cable connectors Rear & front panel mount receptacles Available with 3 or 4 polesM5 Rear Panel Mounting FemaleAvailable in 3 and 4 poles PCB or flying lead termination Rear panel mounting M7 nut Available in 3 and 4 poles PCB or flying lead termination Mates with Flex Inline Body connectors
