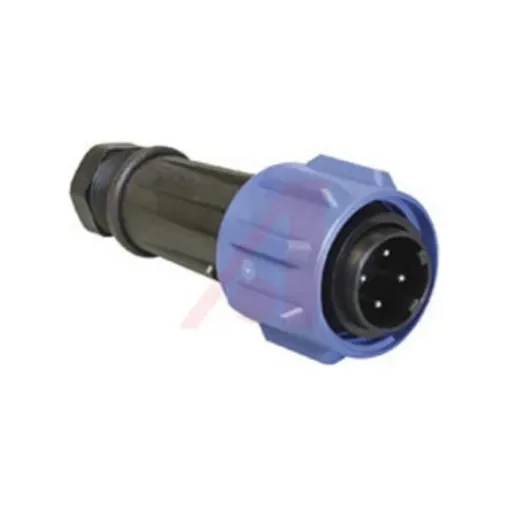

Bulgin Circular Connector, 4 Contacts, Cable Mount, Plug, Male, IP68, Buccaneer 900 Series - PXA911/04/P

Number of Contacts = 4
Mounting Type = Cable Mount
Connector Size = Standard
Plug/Socket = Plug
Contact Gender = Male
Termination Method = Screw
IP Rating = IP68
Current Rating = 32.0A
Body Orientation = Straight
Voltage Rating = 600.0 V
Shell Size = 50
Housing Material = Polyamide
Strain Relief = Yes
Contact Material = Brass°C

Bulgin Circular ConnectorThe Bulgin Buccaneer 900 series 4-poles male circular flex cable connector has a plug in-line type connection. This large cable connector has a voltage rating of 430VAC/DC and current rating is up to 32A per contact. The connector shell is made from glass-filled polyamide with gold-plated copper alloy contacts. The threaded connector mates with cable mount plugs and receptacles with a positive lock feature and quick connect and disconnect capabilities. These connectors also feature a screw locking mating system that ensures a secure connection, these compact connectors are ideal for use in challenging conditions.Features and BenefitsScrew termination Straight body orientation Cable acceptance ranges between 14mm and 22mm Easy assembly, no special tools required Operation temperature ranges between -40°C and 85°C Shell size is 50mm Unshielded Water and dustproofApplicationsElectrical equipment Industrial automationCertificationsIP68/69K rated UL approved
