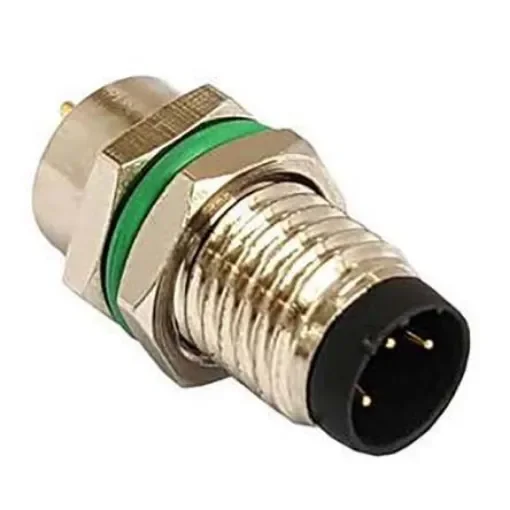

Bulgin Circular Connector, 3 Contacts, Rear Mount, M8 Connector, Plug, Male, IP67, Buccaneer M8 Series - PXMBNI08RPM03APC

Number of Contacts = 3
Mounting Type = Rear Mount
Connector Size = M8
Contact Gender = Male
Termination Method = PCB
IP Rating = IP67
Current Rating = 3.0A
Body Orientation = Straight
Voltage Rating = 60.0 V
Mating Type = Threaded
Housing Material = Nickel
Pole Format = 3
Contact Plating = Gold
Minimum Operating Temperature = -25°C

Bulgin’s M8 circular connectors and over molded cables are designed to fulfil the ever growing demand for sensor, actuator and data connections in process control, industrial machinery and factory automation applications. These compact connectors with screw lock coupling are mechanically and chemically robust, easy to install, minimise downtime and help to increase production efficiency.Straight & right angled configurations 3, 4 or 5 contacts Metal & plastic shell options A & B coded Environmental protection class IP67 Field installable connectors, panel mounts & overmolded cable options PVC or PUR jacketed cable variants with many lengths from 1m – 15mM8 Rear Panel Mounting Male
